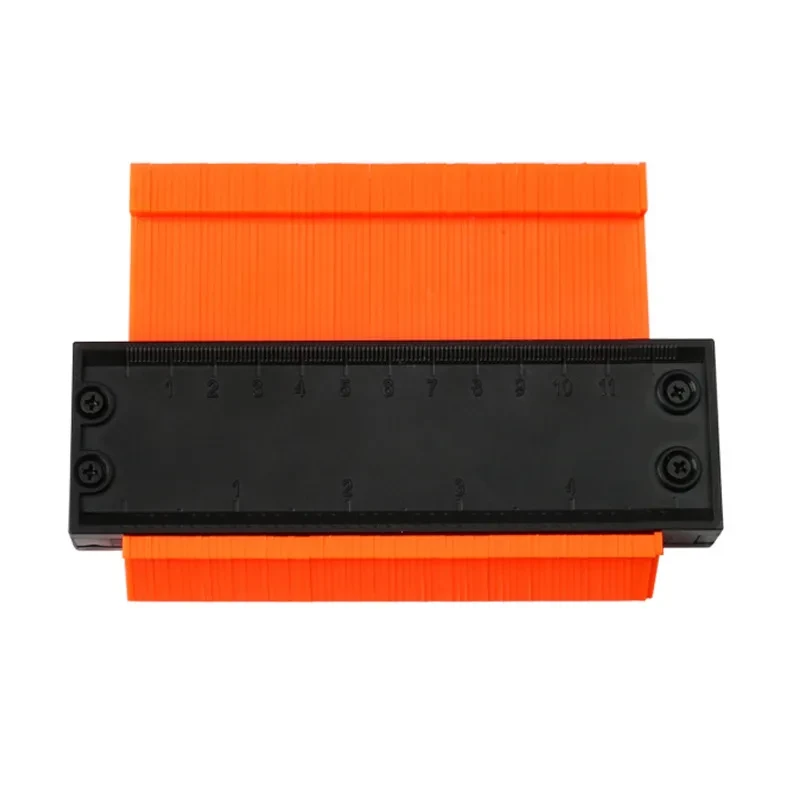

10" Contour Gauge Duplicator with Lock – Precise, Easy-to-Use Tool for Accurate Measurements in Carpentry and DIY Projects

The 10" Contour Gauge Duplicator with Lock is an essential tool for professionals and DIY enthusiasts working on carpentry, woodworking, and home improvement projects. This tool allows you to easily copy and measure irregular shapes, curved profiles, and uneven edges with perfect accuracy. Whether you’re measuring moldings, pipes, door frames, or any other complex shapes, the 10" Contour Gauge ensures that you replicate the contours precisely for a perfect fit.

Why Choose the 10" Contour Gauge Duplicator with Lock?

The 10" Contour Gauge Duplicator with Lock offers precision, durability, and ease of use, making it an indispensable tool for a wide range of tasks. Here’s why it’s the ideal choice for your next project:

1. Perfect for Copying Irregular Shapes and Profiles

The 10" Contour Gauge is designed to help you easily copy and transfer complex profiles and irregular shapes onto your workpiece. Whether you're working with curved edges on furniture, walls, pipes, or moldings, this tool ensures an exact duplication of the shape so that your cuts and installations fit perfectly without gaps or mistakes.

2. Locking Mechanism for Accurate Measurements

The locking mechanism is a key feature of this tool. Once you’ve used the contour gauge to copy the shape, you can lock the pins in place, preventing the profile from shifting as you move it to your workpiece. This ensures that the contour stays intact while you transfer it, making it easy to measure and cut with precision. The lock function is particularly useful when working on multiple pieces or when you need to replicate the same shape in several areas.

3. High-Quality and Durable Construction

Made from high-quality ABS plastic, the 10" Contour Gauge Duplicator is designed to withstand regular use without warping or breaking. The fine, precision pins ensure smooth copying of shapes, and the tool is built to be durable enough for both professional carpentry and DIY projects. The sturdy plastic is also resistant to rust and corrosion, ensuring long-lasting performance even in demanding environments.

4. Easy-to-Use and Time-Saving Tool

Using the 10" Contour Gauge is incredibly simple. Just press the gauge against the surface you want to copy, and the pins will conform to the shape. The clear scale markings on the tool help you align the gauge with the workpiece, making it easy to transfer the measurements accurately. This simple process saves you time and eliminates the need for complex measuring or trial and error, allowing you to work more efficiently and achieve precise results.

5. Versatile Applications for Carpentry, Woodworking, and DIY Projects

This versatile tool is perfect for a variety of applications, including:

• Woodworking: Ideal for copying curved edges, molding, furniture shapes, and trim profiles.
• Carpentry: Great for fitting wood panels, doors, windows, and frames by replicating exact profiles.
• Flooring: Perfect for measuring curved edges of walls or pipes when installing tiles or wooden flooring.
• DIY Projects: Ideal for crafts, home improvements, and any project where precision cutting or fitting is required.

6. Large 10-Inch Size for Bigger Projects

The 10" length of the contour gauge makes it suitable for larger projects, allowing you to copy wider contours and larger shapes with ease. Whether you’re working with large furniture pieces, floor installations, or baseboards, this tool ensures that you can handle a variety of measurement tasks without limitations. The longer size also ensures more accurate and precise measurements, especially for bigger, irregular shapes.

7. Compact and Portable Design

Despite its large 10-inch size, the Contour Gauge Duplicator is still compact and lightweight, making it easy to carry in your tool bag or store in your workshop. Its portable design allows you to take it with you to different job sites or use it in various areas of your home or workspace, ensuring you always have it on hand when needed.

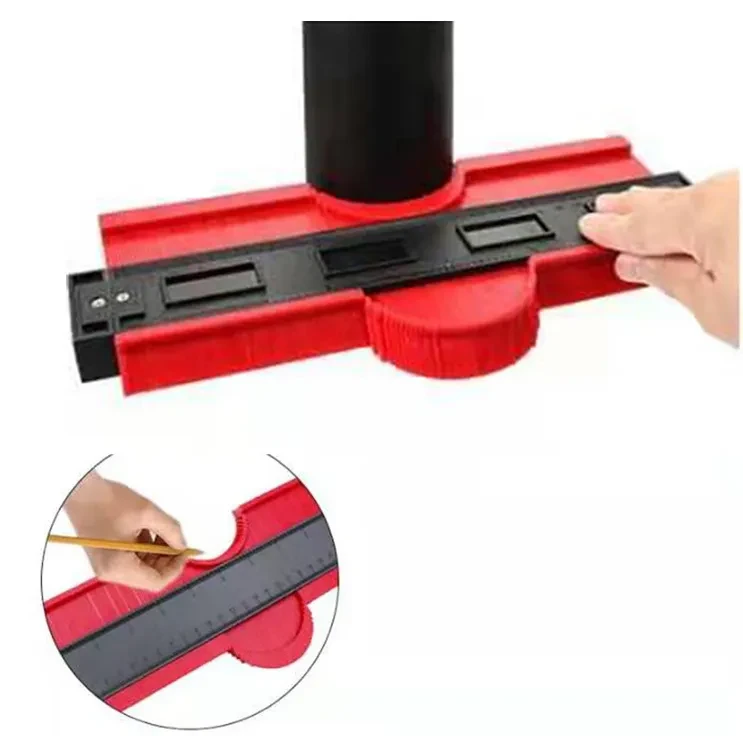

How the 10" Contour Gauge Duplicator with Lock Works

Using the 10" Contour Gauge Duplicator with Lock is simple and straightforward. Here’s how it works:

1. Position the Gauge: Place the Contour Gauge on the surface you want to copy.
2. Copy the Shape: The pins of the gauge will automatically adjust to the shape of the surface.
3. Lock the Contour: Once the shape is captured, press the lock to hold the pins in place.
4. Transfer the Shape: Move the locked contour to your workpiece and use it to trace the profile or make cuts accordingly.
5. Repeat as Needed: You can repeat the process for multiple copies or areas as needed.
6. Store the Tool: After use, unlock the tool and store it in your toolbox or work area.

Key Features of the 10" Contour Gauge Duplicator with Lock:

• 10-Inch Length: Ideal for measuring and copying larger shapes and profiles.
• Locking Mechanism: Keeps measurements intact for easy transfer and ensures accuracy.
• Durable ABS Plastic: High-quality, long-lasting construction that resists wear and corrosion.
• Precision Pins: Conforms accurately to curved surfaces and irregular profiles.
• Ergonomic Design: Easy to use and handle with a simple, straightforward operation.
• Versatile Applications: Perfect for woodworking, carpentry, flooring, and DIY projects.
• Compact and Portable: Easy to store and carry between job sites or workshops.

Perfect for New Zealand Carpenters, Woodworkers, and DIY Enthusiasts

Whether you’re installing wooden panels, creating custom furniture, or working on home improvement projects, the 10" Contour Gauge Duplicator with Lock ensures precise and accurate shape duplication every time. Designed for professionals and DIY enthusiasts in New Zealand, this tool helps you achieve perfect cuts and fittings, saving time and improving the quality of your work.

Feature:

• A profile gauge or contour gauge, a tool for recording the cross-sectional shape of a surface
• High Quality: Contour gauge is made of high quality ABS plastic and metal, high strength, rustproof and durable.
• Fixed lock: Design with fixed lock to ensure firmly keeps the shape that you press it into and transfer the outline to your chosen surface.
• Both Inch & CM Measurements - The layout template tool has ruler markings on the tool body in one-inch and one-centimeter increments, meets any of your measurement needs, providing you with accurate reads
• Easy to use: Simply press the tooth against the object to match the contour and then track the shape you need.
• High Accuracy: High definition mark line, clear enough, easy and convenient to read.
• Profile gauges are used widely in metalworking and woodworking for decorative moldings or pots. Ideal for winding pipes, circular frames, ducts, laminate, checking dimensions, moulding, etc

Specifications: Material: Aluminum alloy +ABS Color: Orange (check other color from my listings) Size: 10inch(25cm)with lock

Package includes: 1 x 10 inch Contour Gauge
