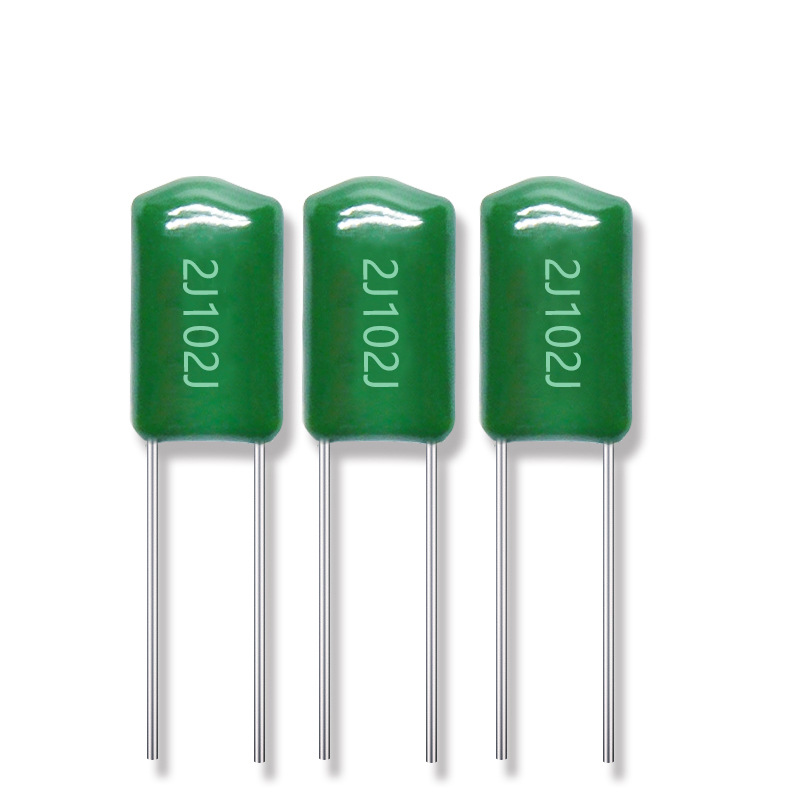

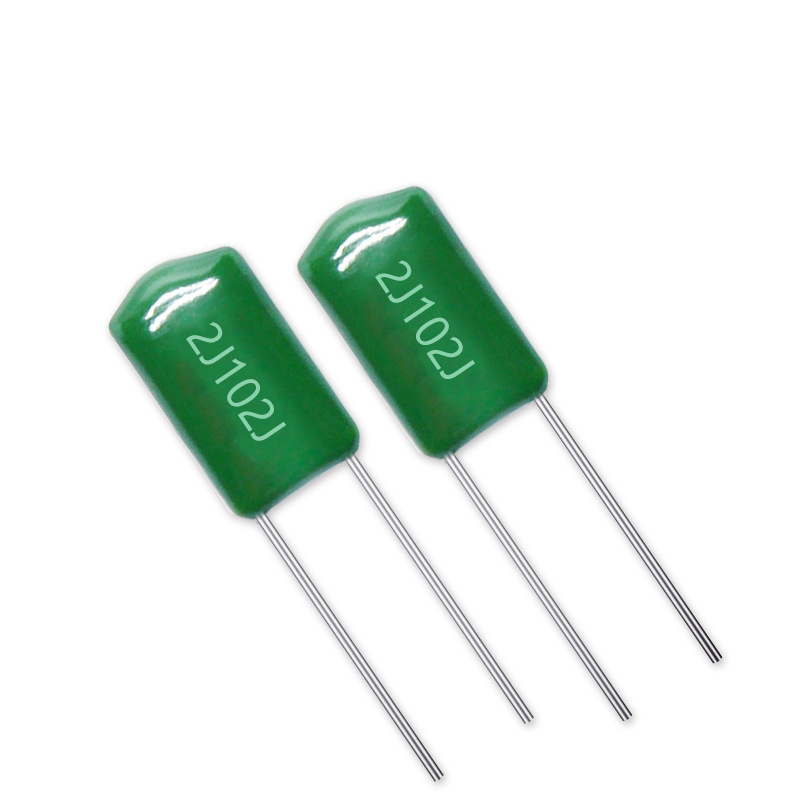

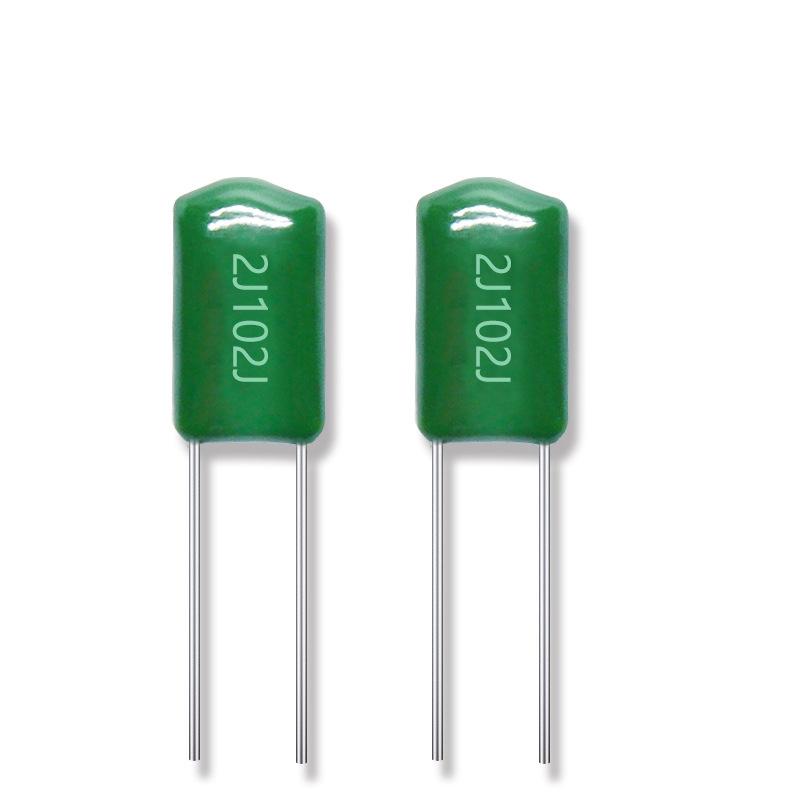

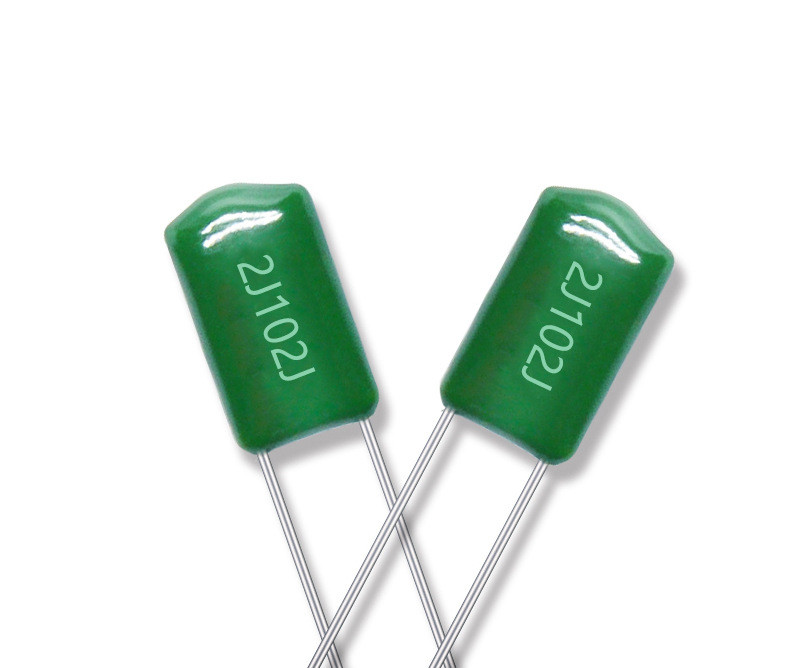

CL11 Polyester 2J102J 1NF Pitch 5mm 630V102J In-line Mylar Capacitor

Introduction to the CL11 Polyester 2J102J 1NF Mylar Capacitor

The CL11 Polyester 2J102J 1NF Mylar Capacitor is a high-performance electronic component designed for use in various circuits and power supplies. Known for its stability and reliability, this capacitor is ideal for applications requiring precise filtering, coupling, or energy storage. Featuring a 5mm pitch and a 630V rating, it caters to a wide range of electronic and electrical projects, making it a valuable addition for New Zealand professionals, hobbyists, and engineers.

H2: Key Features of the CL11 Polyester Capacitor

1. High Voltage Rating

With a 630V rating, this capacitor is suitable for high-voltage applications, offering reliable performance in demanding environments.

2. 1NF Capacitance

The 1 nanofarad (1NF) capacitance provides precise energy storage and release, essential for stable circuit operations.

3. 5mm Pitch

The 5mm lead spacing ensures easy integration into printed circuit boards (PCBs), simplifying design and assembly.

4. Durable Polyester Film

The mylar construction ensures excellent electrical insulation, stability, and resistance to environmental factors like heat and moisture.

5. In-Line Configuration

The in-line design reduces space requirements on PCBs, making it ideal for compact or high-density circuit layouts.

6. Wide Operating Temperature Range

The capacitor operates effectively across a wide temperature range, ensuring consistent performance in various conditions.

7. Low Loss and High Stability

Designed with low dielectric losses, this capacitor maintains stability and reliability in long-term applications.

8. Versatile Applications

Ideal for filtering, coupling, and bypassing in power supplies, amplifiers, and signal processing circuits.

H2: Why Choose the CL11 Polyester Capacitor?

1. Tailored for New Zealand’s Electronics Needs

Whether for professional electronics or hobbyist projects, this capacitor meets the diverse requirements of New Zealand's engineers and makers.

2. Reliable Performance

The polyester film construction ensures durability and stable capacitance, even in high-voltage or high-frequency applications.

3. Compact and Space-Saving

The 5mm pitch and in-line design allow for efficient use of PCB space, catering to modern, compact electronic designs.

4. Cost-Effective Component

Offering excellent performance at a competitive price, this capacitor is a practical choice for both large-scale production and individual projects.

5. Environmentally Resilient

Resistant to heat, moisture, and mechanical stress, this capacitor ensures consistent performance in challenging environments.

H2: Maintenance and Care Tips for the CL11 Capacitor

1. Store Properly: Keep the capacitor in a cool, dry place to prevent moisture absorption or degradation.
2. Inspect for Damage: Before installation, check for visible damage or deformation to ensure optimal performance.
3. Handle with Care: Avoid excessive bending or pulling on the leads to prevent structural damage.
4. Match Circuit Specifications: Ensure the capacitor's voltage and capacitance ratings meet your circuit requirements.
5. Monitor During Use: In high-stress applications, periodically check the capacitor for signs of overheating or failure.

H2: Popular Applications for the CL11 Polyester Capacitor

1. Power Supplies

Used for filtering and energy storage in power supply circuits, ensuring stable voltage output.

2. Audio Equipment

Improves sound quality in amplifiers and audio processing by coupling or bypassing signal paths.

3. Signal Processing

Stabilizes signal transmission in high-frequency circuits, enhancing performance and reliability.

4. Motor Control Circuits

Ensures smooth operation in motor control systems by filtering and decoupling.

5. DIY Electronics

Perfect for hobbyists building custom circuits, such as timers, oscillators, and filters.

H2: How to Use the CL11 Polyester Capacitor

1. Check Circuit Requirements

• Verify that the capacitor’s voltage and capacitance ratings match your circuit's specifications.

2. Insert into PCB

• Align the leads with the PCB holes spaced at 5mm and solder them securely in place.

3. Test for Continuity

• After installation, test the circuit to ensure the capacitor is functioning correctly.

4. Monitor During Operation

• Observe the circuit for stability and check for any signs of overheating or failure during prolonged use.
  Product information:


Model: 2J102J
Series: Polyester Capacitor
Nominal capacity: 630V102J
Tolerance 5 (%)
Rated voltage - AC: 630 (V)
Rated voltage - DC: 630 (V)
Dielectric material: polyester film
Equivalent Series Resistance (ESR): Standard
Operating temperature range: -55℃-125℃
Application: filtering
Grade: Grade A
Termination Type: In-Line
Lead Type: Radial Lead Wire
Lead pitch: 5mm
Height - Mounting (Maximum): Standard
Installation Type: Plugin
Encapsulation/Enclosure: Organic Film
Features: good stability

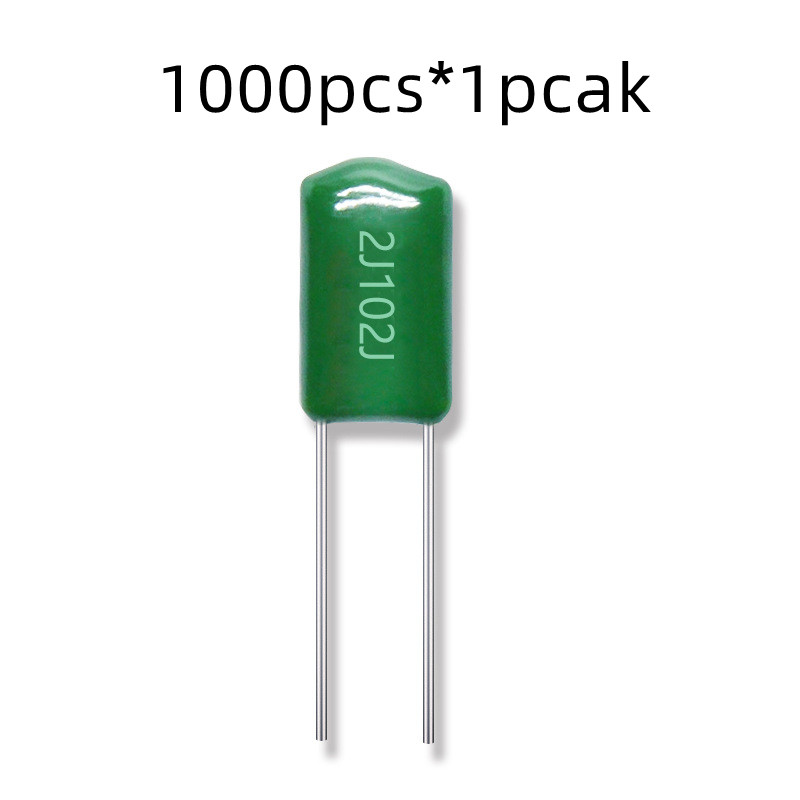

Packing list:

Polyester Capacitor1000pcs*1pack
