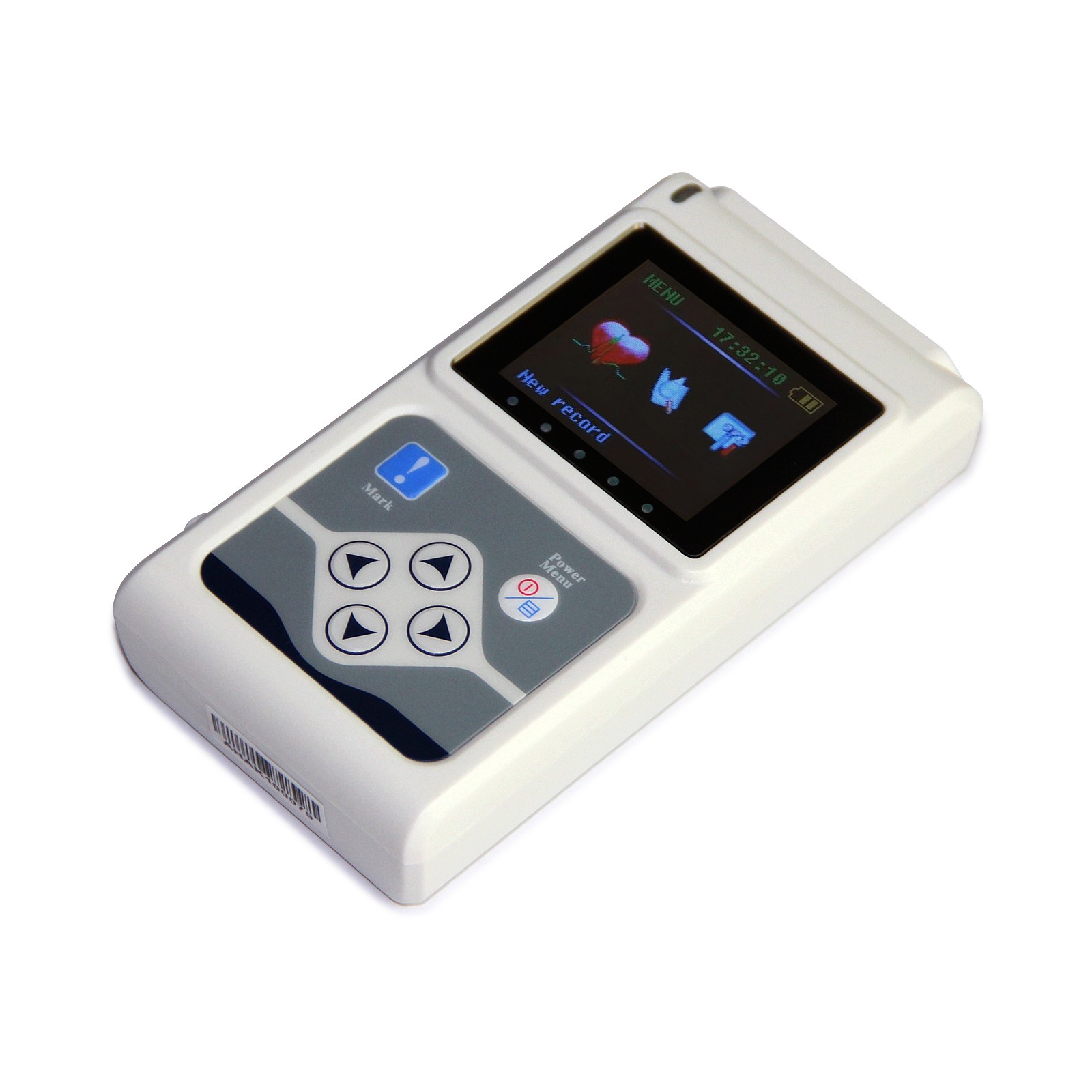

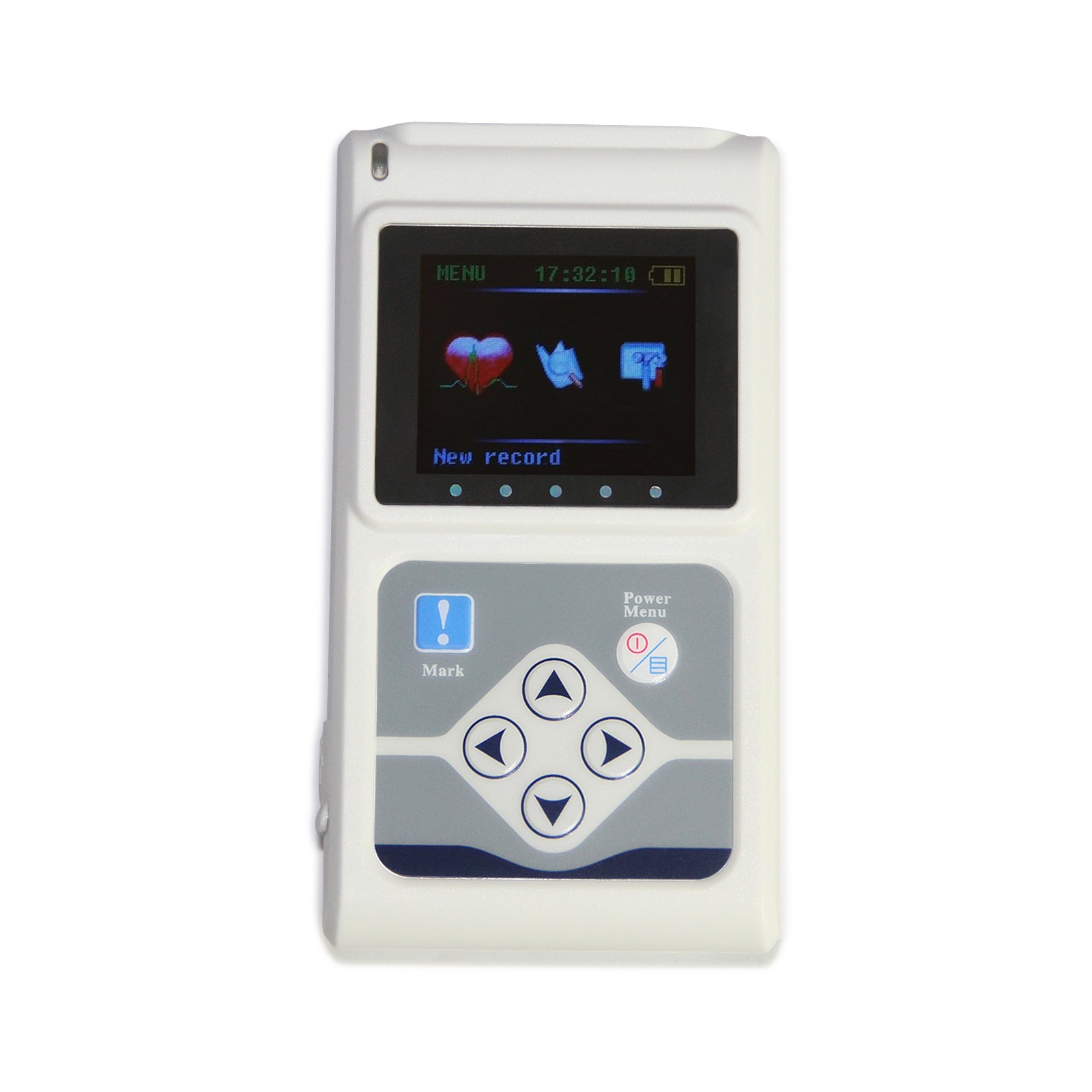

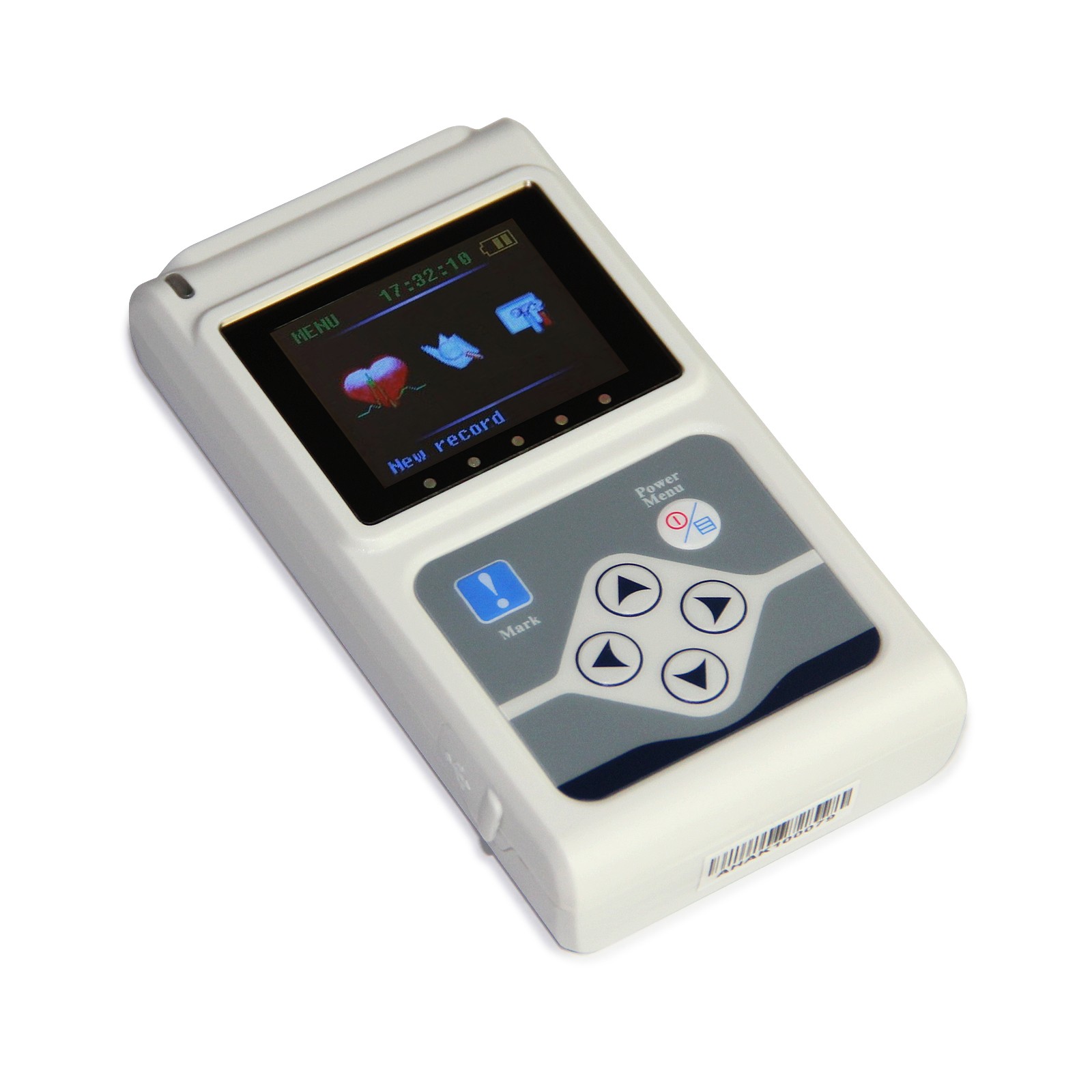

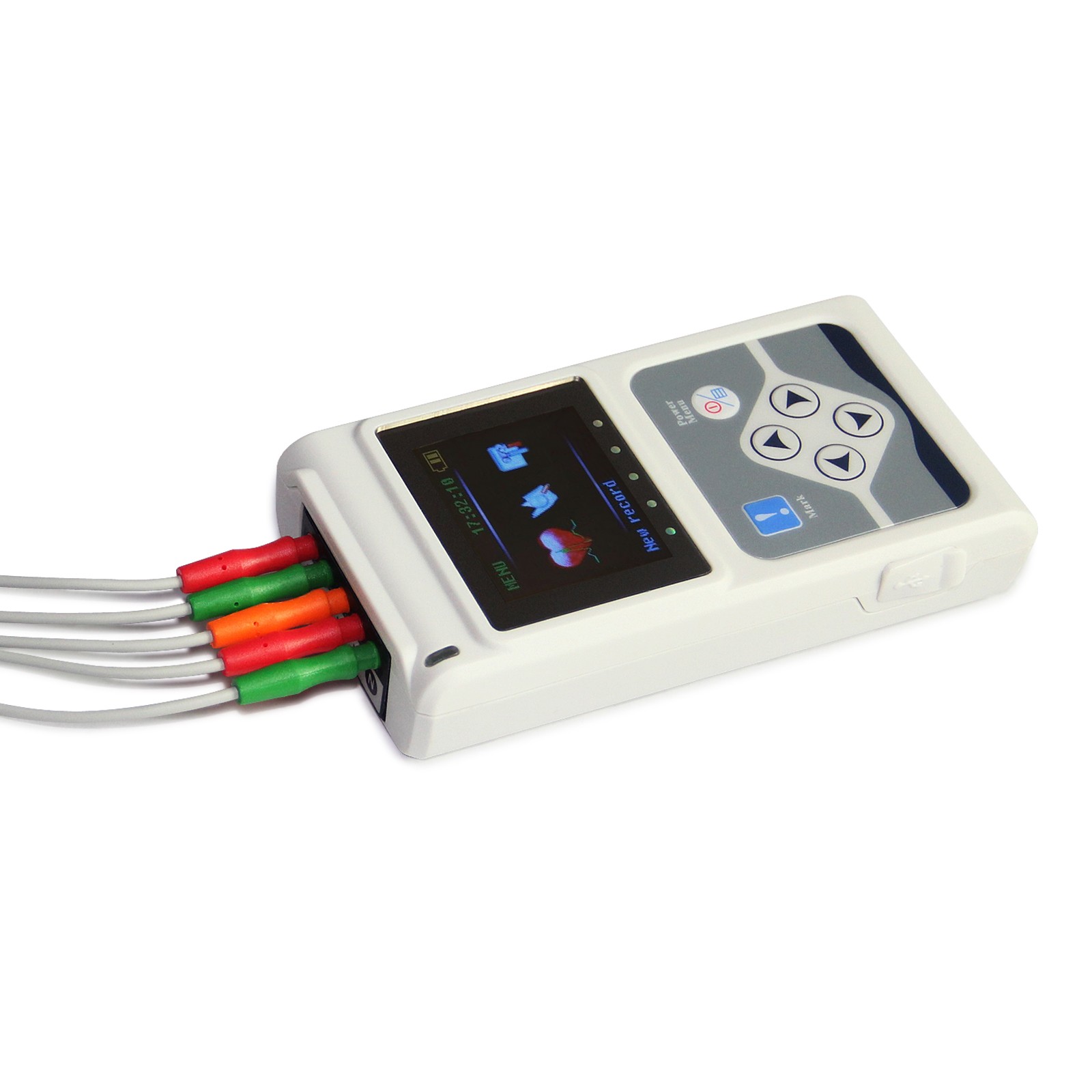

Handheld 24 Hours 3-Channel ECG EKG Holter Monitor System: CONTEC TLC9803 with PC Software

Introduction: Your All-In-One Solution for Continuous Heart Monitoring

The Handheld 24 Hours 3-Channel ECG EKG Holter Monitor System – CONTEC TLC9803 is a state-of-the-art heart monitoring device designed for medical professionals and individuals who need reliable, continuous, and real-time heart data. Ideal for 24-hour ECG monitoring, this compact and portable system captures a comprehensive view of your heart’s electrical activity, helping to identify potential abnormalities or irregularities that may otherwise go unnoticed.

Featuring 3-channel ECG capabilities, this advanced Holter monitor offers continuous, real-time data recording, which can be vital for diagnosing conditions like arrhythmias, palpitations, or other heart-related issues. The CONTEC TLC9803 Holter Monitor System is designed to be user-friendly and provides powerful PC software integration for easy analysis and detailed reporting, making it an essential tool for healthcare professionals and clinics.

Key Features of the Handheld 24 Hours 3-Channel ECG EKG Holter Monitor System

24-Hour Continuous Heart Monitoring

One of the standout features of the CONTEC TLC9803 Holter Monitor is its ability to provide continuous ECG monitoring for up to 24 hours. This is crucial for detecting heart conditions that might not be present during a short ECG test or that only manifest intermittently.

• Continuous Recording: The device allows for uninterrupted recording of heart data, capturing every detail of electrical activity over a full 24-hour period.
• Detection of Abnormalities: The extended monitoring time ensures that arrhythmias or heart irregularities that occur sporadically are captured, providing a clearer picture of the heart’s health.
• Portable and Convenient: Designed for easy wearability, the device is lightweight and portable, ensuring that patients can go about their daily activities without being restricted.

3-Channel ECG for Detailed Heart Data

The 3-channel ECG recording capability of the TLC9803 Holter Monitor ensures that you receive a more comprehensive view of the heart’s electrical activity. Traditional single-channel ECGs may miss certain irregularities, but the three channels provide a broader spectrum of data, allowing for a more accurate diagnosis.

• Multi-Lead Analysis: By recording three channels, the device offers better detection of arrhythmias, abnormal heart rhythms, and ischemic events.
• High-Quality Data: Each of the three channels captures heart signals in high resolution, allowing for detailed analysis of the heart’s electrical patterns.
• Advanced Diagnostic Tools: The multi-channel setup provides invaluable data for diagnosing complex cardiac conditions.

Compact and Handheld Design

The TLC9803 Holter Monitor is designed with convenience and portability in mind. Unlike bulky traditional monitors, this device is lightweight and handheld, allowing users to carry it comfortably for extended periods.

• Easy to Use: Its compact design makes it ideal for both patients and healthcare professionals. The device is simple to set up and wear, making it a great choice for those who need continuous heart monitoring while going about their normal routine.
• Comfortable Wear: The system is designed to be worn discreetly and comfortably, ensuring that users don’t feel burdened while wearing it for long durations.

PC Software for Comprehensive Data Analysis

The CONTEC TLC9803 comes with a PC software package that allows for detailed data analysis. After the monitoring period, the recorded ECG data can be easily transferred to a computer for further review. The software provides robust tools for analyzing the data and generating detailed reports that can assist healthcare providers in diagnosing cardiac conditions.

• User-Friendly Interface: The software is designed with an intuitive interface, making it easy for medical professionals to navigate and analyze the ECG data.
• Detailed Reports: The software can generate comprehensive reports, including detailed graphs and charts of the heart’s activity during the monitoring period.
• Real-Time Monitoring: The PC software can also support real-time monitoring for clinicians who wish to observe the heart’s activity live while the patient is wearing the device.
• Data Storage and Export: The software allows for easy storage of ECG data and enables users to export the data in multiple formats for further review or sharing with specialists.

Accurate and Reliable Performance

The CONTEC TLC9803 Holter Monitor uses advanced technology to ensure the highest level of accuracy in heart rate and rhythm monitoring. Its high-quality sensors and reliable signal processing ensure that the recorded ECG data is both precise and dependable.

• Real-Time ECG Data: The system provides real-time ECG readings with high fidelity, ensuring no detail is missed during the monitoring period.
• Durable Battery Life: The Holter monitor is equipped with a long-lasting battery, allowing it to operate for the entire 24-hour monitoring period without needing a recharge.
• Multiple Recording Modes: The device offers multiple recording modes, ensuring it can adapt to the needs of different users, whether they require continuous recording or specific event-triggered recordings.

Ideal for Various Medical Applications

The TLC9803 Holter Monitor is suitable for a variety of medical applications, making it a versatile tool for healthcare professionals. Its key uses include:

• Arrhythmia Detection: Ideal for patients experiencing symptoms like palpitations, dizziness, or shortness of breath, the Holter monitor provides continuous data to help detect heart rhythm disorders.
• Post-Surgery Monitoring: Used for patients recovering from heart surgery, the monitor provides continuous heart data to ensure proper healing and detect any potential complications.
• Heart Disease Diagnosis: The detailed data captured by the device can aid in diagnosing heart conditions such as coronary artery disease, heart failure, or myocardial ischemia.
• Routine Checkups: It’s also a valuable tool for routine checkups, especially for patients with a family history of heart disease or those who are at high risk for heart conditions.

Why Choose the Handheld 24 Hours 3-Channel ECG EKG Holter Monitor System – CONTEC TLC9803?

• Continuous Monitoring: Get 24-hour heart data for accurate diagnosis of conditions that may not show up in short ECG tests.
• 3-Channel Recording: Provides a more detailed and comprehensive analysis of the heart’s electrical activity.
• PC Software Integration: Easy data analysis and reporting with the included software for in-depth review and diagnosis.
• Portable and Comfortable: Wearable for 24 hours with minimal discomfort, perfect for active patients.
• Accurate and Reliable: Offers high-quality, real-time ECG data with advanced signal processing technology.

Applications of the CONTEC TLC9803 Holter Monitor

• General Healthcare: Ideal for use in hospitals, clinics, and private practices for patients requiring ECG monitoring.
• Cardiologists: A valuable tool for cardiologists to assess arrhythmias and other heart conditions.
• Emergency Services: The Holter monitor provides continuous monitoring for patients requiring urgent care or those suspected of having heart issues.
• Home Use: Perfect for patients who need long-term monitoring but prefer to remain at home during the process.

Conclusion: Advanced Heart Monitoring with CONTEC TLC9803 Holter Monitor

The Handheld 24 Hours 3-Channel ECG EKG Holter Monitor System – CONTEC TLC9803 offers an innovative, reliable, and efficient way to continuously monitor your heart’s activity. Its advanced features, including real-time data capture, 3-channel ECG monitoring, and PC software integration, make it an invaluable tool for both patients and healthcare professionals.

Whether you are monitoring a heart condition, recovering from heart surgery, or simply seeking a comprehensive heart assessment, the CONTEC TLC9803 provides accurate, detailed, and actionable ECG data, helping to detect any abnormalities early and ensuring you receive the best care possible.

Description

Dynamic ECG Systems adopt 3-lead, which can continuously record ECG waveform for 24-hour and analyze ECG waveform by the PC software. It is applicable for use in medical institution and community.


Function
1)The recorder can real-time store ECG data for 24-hour.
2)Arrhythmia analysis basing on MCSSTM and TMCATM can greatly reduce doctor’s work.
3)With more than 10 templates(such as atrial premature beat, ventricular premature beat, long interval, atrial fibrillation, etc.) and many user-defined modules, which can almost distinguish any kind of pathologic waveforms.
4)Flexible analysis channel selection function, which ensures that any channels can be selected as the main analysis channel.
5)Flexible atrial fibrillation analysis, which ensures that physicians can use the whole or segmented AUTO/manual analysis, more accurate in atrial fibrillation analysis.
6)All pacemakers(such as AAI, VVI, DDD etc.) can be analyzed by the powerful pacemaker analysis function.
7)With many pacing analysis templates, such as “Dual chamber pacing”, “Atrial pacing”, “Ventricular pacing”, “Ventricular Pseudofusion” and “Ventricular asynchronous pacing”, etc.
8)Single or full-lead ECG in any time bucket can be reviewed by the fast review analysis function.
9)With analysis functions for 5-minute, 1-hour and 24-hour heart rate variability.
10)One-key print, convenient and fast to print the reports.
11)Perfect case management function.
12)The risk of sleep breath pause can be predicted by the unique "Sleep breath pause syndrome"analysis function.
13)The death risk in patients with myocardial infarction can be predicted by the "HRT" analysis function.
14)“T-Wave alternation” is an important index to predict the malignant arrhythmia and sudden cardiac death


Performance

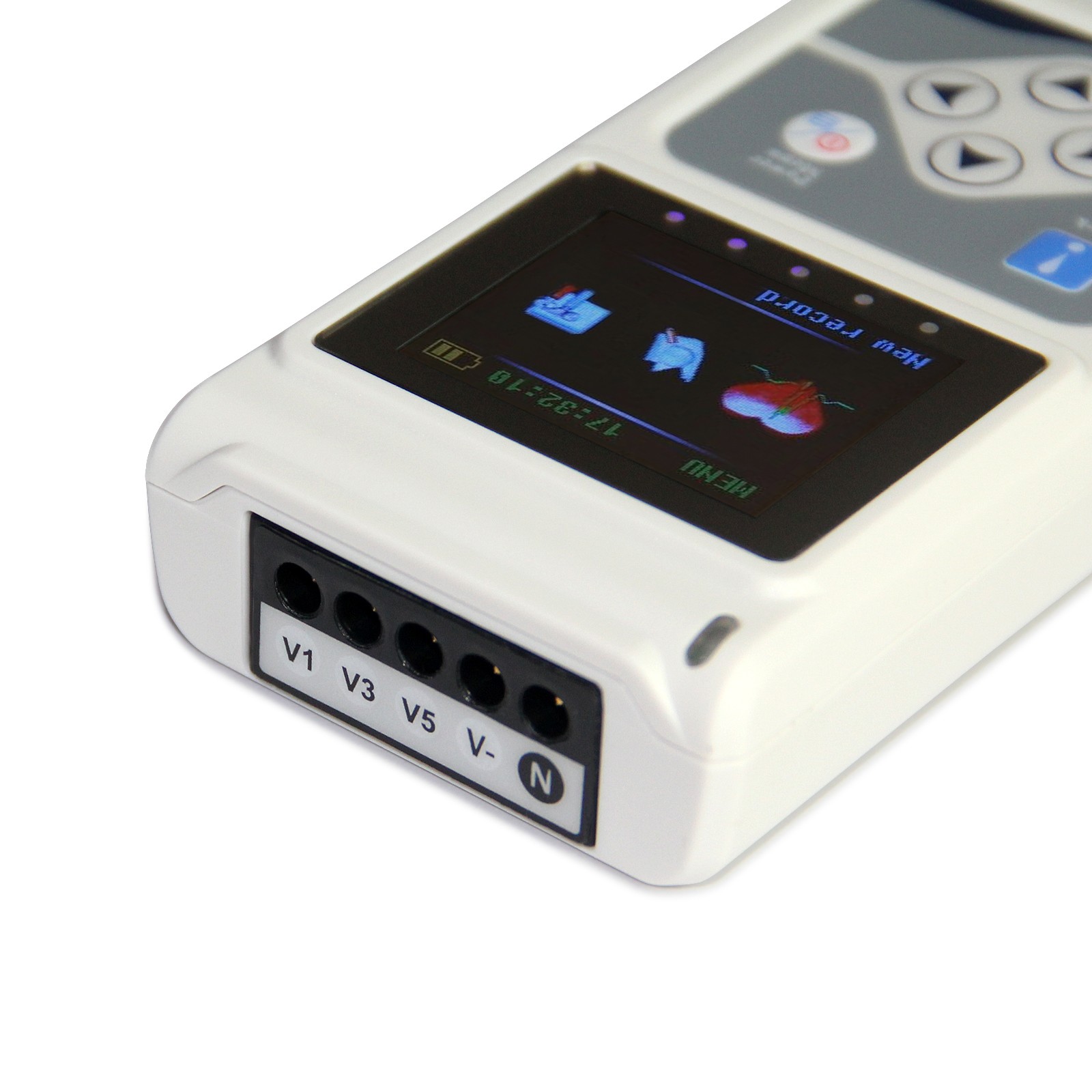

Lead: 3-lead
Record time: ≥24-hour

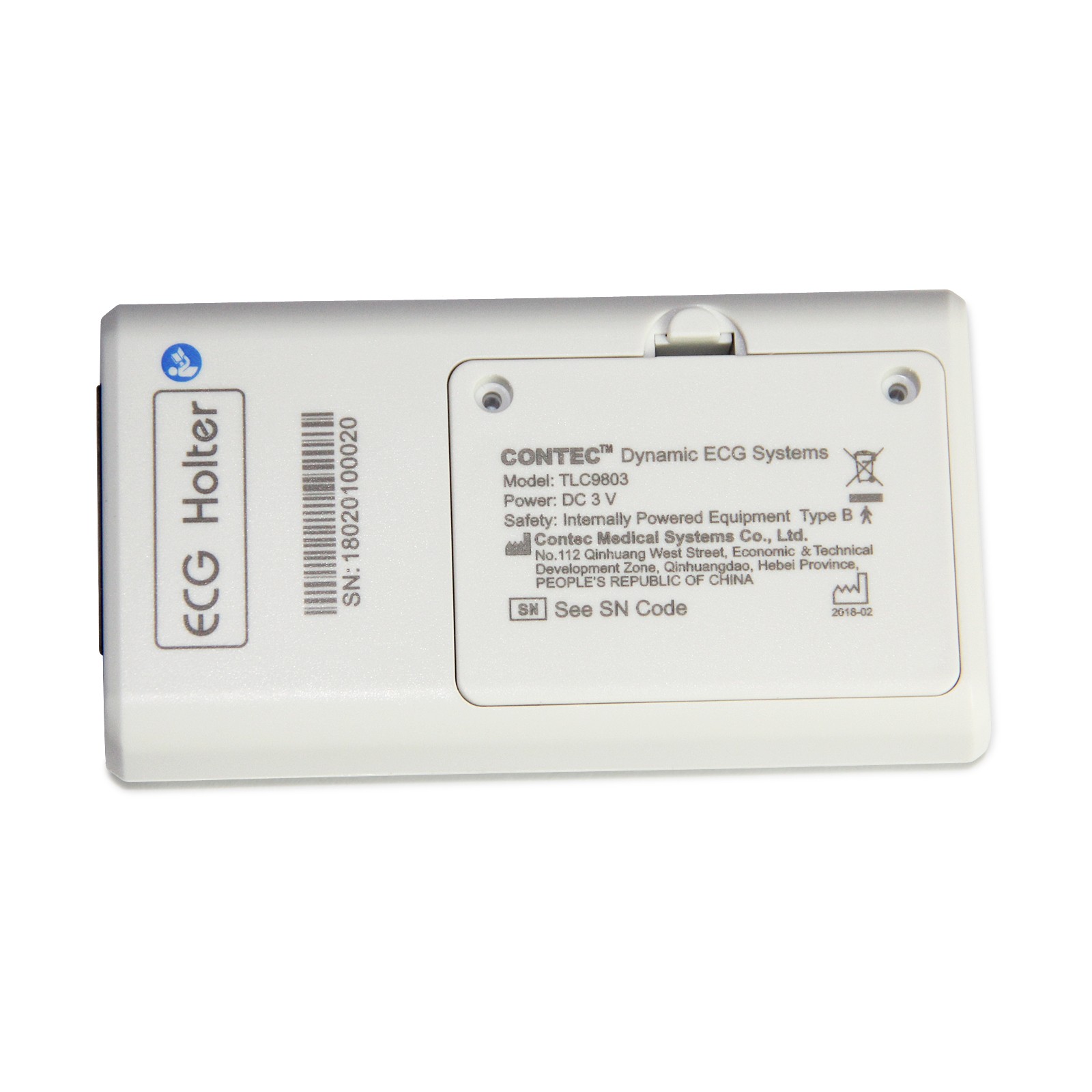

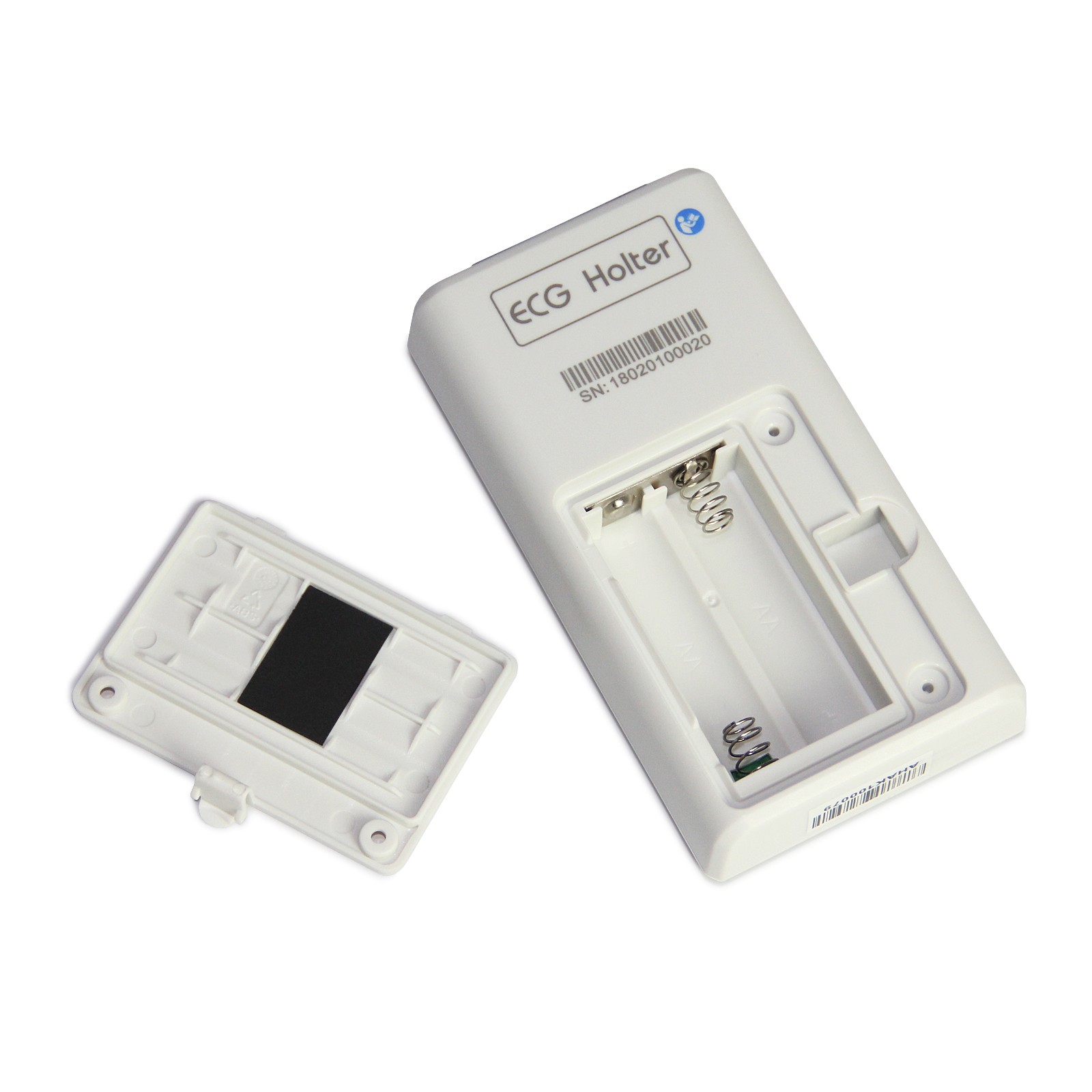

Power supply: two “AA” alkaline batteries

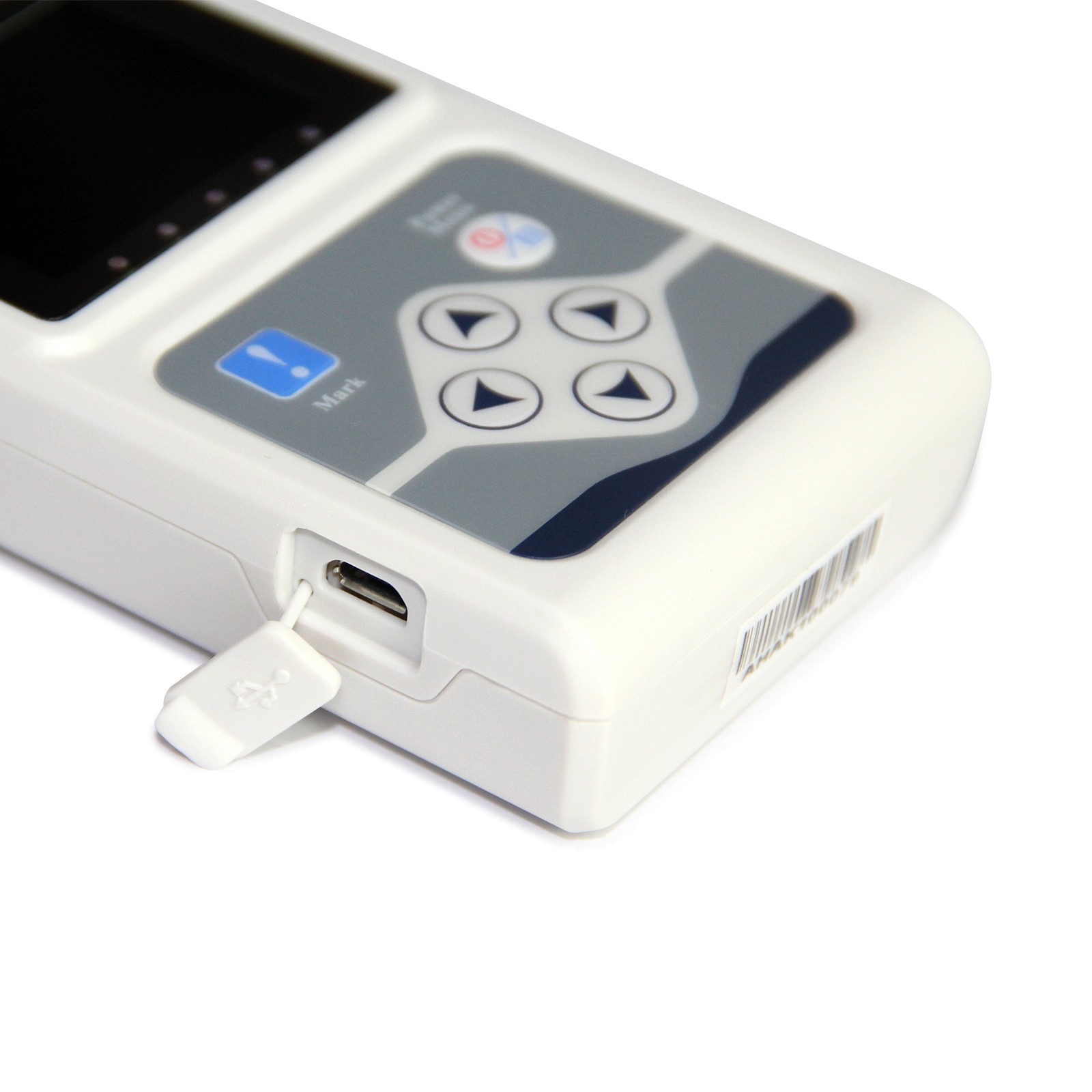

Interface: USB2.0
Sampling accuracy: 24bit
Sampling frequency: 250Hz
Dynamic range: 10mV
Input impedance: ≥10MΩ
CMR: ≥60dB
Gain accuracy: At all possible gain settings, the maximum amplitude error of the output is ±10%
Gain stability: One minute after energizing the device, the gain change in stable ambient conditions shall not exceed 3% over a 24h period.
System noise: ≤50µVp-p
Multichannel crosstalk: ≤0.2mV
Frequency response: The amplitude response to sinusoidal signals within the frequency range 0.05Hz to 40Hz shall be between the +3dB to -3dB of the response at 5 Hz.
Minimum measure signal: 50 µV
With the function in the presence of pacemaker pulses
Timing accuracy: the overall error during 24h shall not exceed 30s.




Accessories

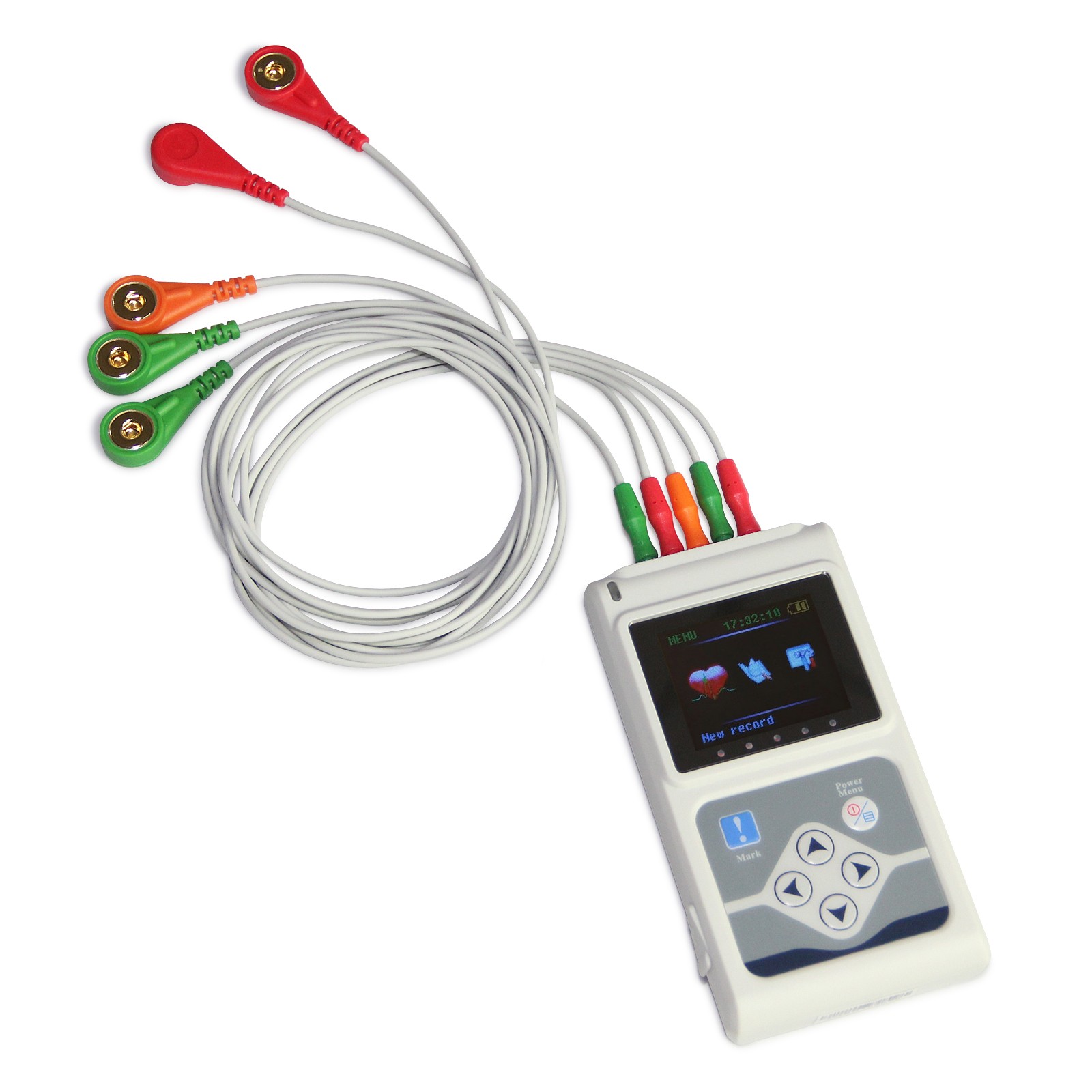

Lead cable (1 set)
ECG electrode (1 bag)
USB cable(1)
Bag(1)
User manual(1)


Physical characteristic
Dimension: 111mm(L) × 61mm(W) × 25mm(H)
Weight: about 105g(without batteries)
