Oscilloscope electronic teaching and training DIY kit

Oscilloscope Electronic DIY Kit – Teaching & Training Tool for Electronics Enthusiasts

Introduction to the Oscilloscope DIY Kit

Learn electronics and signal analysis with the Oscilloscope Electronic DIY Kit, a hands-on teaching and training tool designed for students, hobbyists, and engineers. This DIY oscilloscope kit allows you to build, calibrate, and analyze electronic signals, making it an excellent resource for STEM education, circuit testing, and signal visualization.

With user-friendly assembly, clear display, and versatile functionality, this compact digital oscilloscope is perfect for learning waveform analysis, troubleshooting circuits, and gaining practical electronics experience.

Why Choose the Oscilloscope DIY Kit?

✔ Hands-On Learning Experience – Assemble and calibrate your own oscilloscope.
✔ Perfect for Students & Hobbyists – Ideal for electronics education and DIY projects.
✔ Real-Time Signal Visualization – Analyze voltage, frequency, and waveform patterns.
✔ Compact & Portable Design – Lightweight, easy to carry, and great for on-the-go use.
✔ High-Resolution LCD Display – Clear, easy-to-read waveforms and signal data.
✔ Multi-Function Features – Measures AC/DC signals, detects frequency, and analyzes circuits.
✔ Affordable & Educational – Cost-effective training tool for beginners and professionals.

If you're looking for a practical and interactive way to learn electronics, this DIY oscilloscope kit is the perfect choice!

Key Features of the Oscilloscope DIY Kit

1. DIY Assembly for Hands-On Electronics Learning

• Understand circuit components by assembling your own oscilloscope.
• Improve soldering and circuit-building skills with step-by-step instructions.

2. Digital Display for Real-Time Waveform Analysis

• Monitors electronic signals with a user-friendly LCD screen.
• Shows voltage, frequency, and waveform details for accurate measurements.

3. Multi-Mode Functionality for Various Applications

• AC/DC voltage measurement for circuit testing.
• Frequency and signal detection for troubleshooting and research.
• Supports audio, RF, and microcontroller signal analysis.

4. Portable, Compact & Battery-Powered Design

• Lightweight and easy to carry for on-the-go testing.
• Ideal for home labs, classrooms, and fieldwork.

5. USB & Battery Power Options

• Runs on USB or battery power for flexible operation.
• Efficient power consumption for extended use.

6. Easy Calibration & User-Friendly Controls

• Intuitive interface for beginners.
• Pre-calibrated for accurate readings.

Who Can Benefit from the Oscilloscope DIY Kit?

✔ Electronics Students & Engineers – Learn circuit analysis and waveform testing.
✔ STEM Educators & Teachers – Engage students with hands-on electronics experiments.
✔ DIY Enthusiasts & Makers – Build and experiment with signal analysis projects.
✔ Hobbyists & Tinkerers – Enhance soldering and circuit troubleshooting skills.
✔ Tech Professionals & Innovators – Use as a secondary tool for basic circuit testing.

Customer Reviews & Testimonials

⭐⭐⭐⭐⭐ – Olivia R. (Auckland, NZ)
"Great learning kit! Helped me understand waveform analysis and circuit behavior hands-on."

⭐⭐⭐⭐⭐ – James T. (Wellington, NZ)
"Perfect for beginners. Easy assembly, and the display is clear. Great for electronic projects!"

⭐⭐⭐⭐⭐ – Sophie M. (Christchurch, NZ)
"Affordable and educational! I use it to test small circuits and microcontroller signals."

Frequently Asked Questions (FAQs)

1. What’s included in the Oscilloscope DIY Kit?

• Oscilloscope PCB, display module, resistors, capacitors, ICs, connectors, and user manual.

2. Do I need prior electronics knowledge to assemble this kit?

• Basic soldering and circuit assembly knowledge is helpful but not required.

3. What types of signals can this oscilloscope measure?

• It measures AC/DC voltage, frequency, and digital/analog waveforms.

4. Is this kit suitable for professional use?

• It’s designed for educational and hobbyist purposes rather than high-end industrial applications.

5. How do I power the oscilloscope?

• Via USB power or battery for portable operation.

Final Thoughts

The Oscilloscope Electronic DIY Kit is an excellent training tool for those looking to understand electronics, waveform analysis, and circuit diagnostics. With its hands-on assembly, digital display, and practical applications, this DIY oscilloscope is ideal for students, hobbyists, and educators.

If you're looking for a fun, educational, and affordable electronics training kit, this is the perfect choice!

Order Your Oscilloscope DIY Kit Today!

Start your electronics learning journey with this high-quality, beginner-friendly oscilloscope kit—fast shipping available in New Zealand!

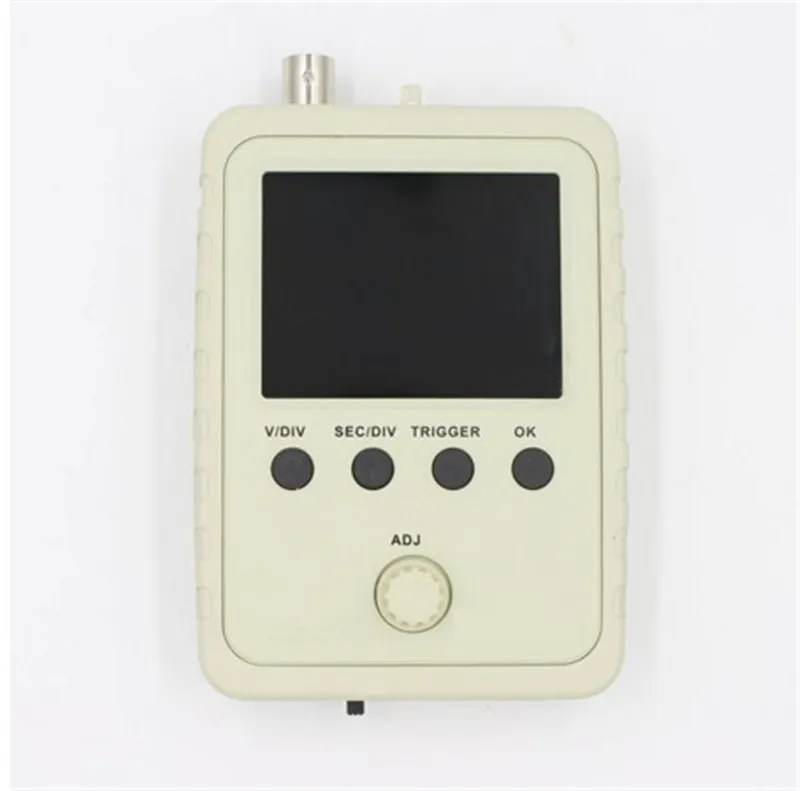

Shell oscilloscope uses 9V DC power supply (the power supply voltage should not exceed 10V! Otherwise it may burn the machine). The kit itself does not include a power supply. Users need to prepare the power supply by themselves, and the power supply current should be able to provide more than 200mA.
Characteristic index:
The highest real-time sampling rate: 1Msps
Precision: 12Bit
Sampling buffer depth: 1024 bytes
Analog bandwidth: 0-200KHz
Vertical sensitivity: 5mV/Div – 20V/Div (in 1-2-5 way)
Adjustable vertical displacement, with instructions
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
Coupling methods include DC/AC/GND
Horizontal time base range: 10μs/Div – 50s/Div (increase by 1-2-5)
With automatic, conventional and single trigger modes, it is convenient to capture instant waveforms
Can be triggered by rising or falling edge
Trigger level position is adjustable, with indication
Observe the waveform before the trigger (negative delay)
The waveform display can be frozen at any time (HOLD function)
Comes with 1KHz /3.3V square wave test signal source

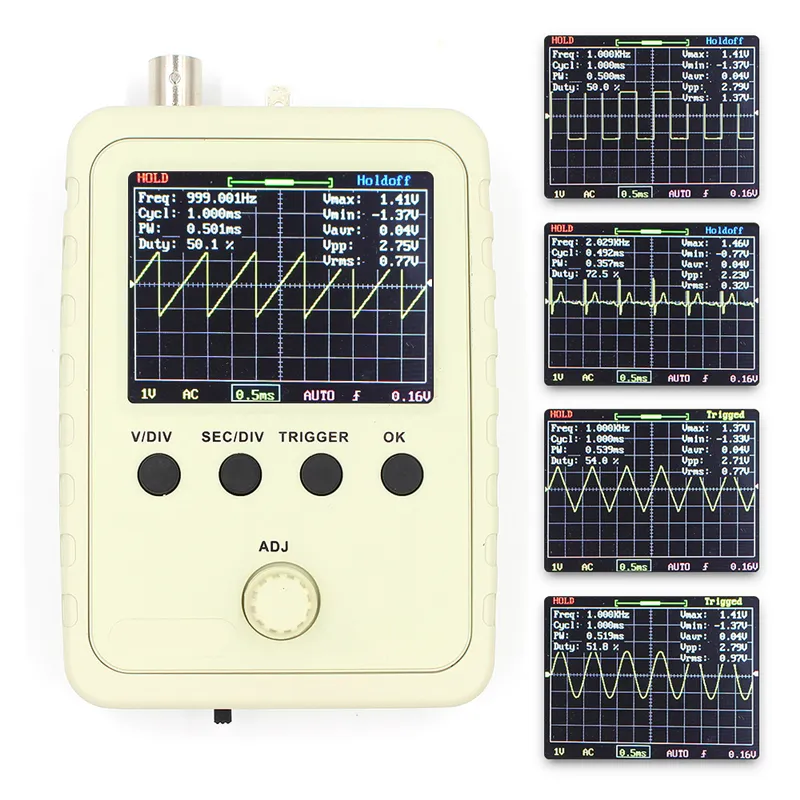

With digital display of waveform parameters, the parameters that can be displayed are: frequency, period, pulse width, duty cycle, maximum value, minimum value, average value, peak-to-peak value, effective value
Save/recall the waveform, the waveform does not disappear when turned off

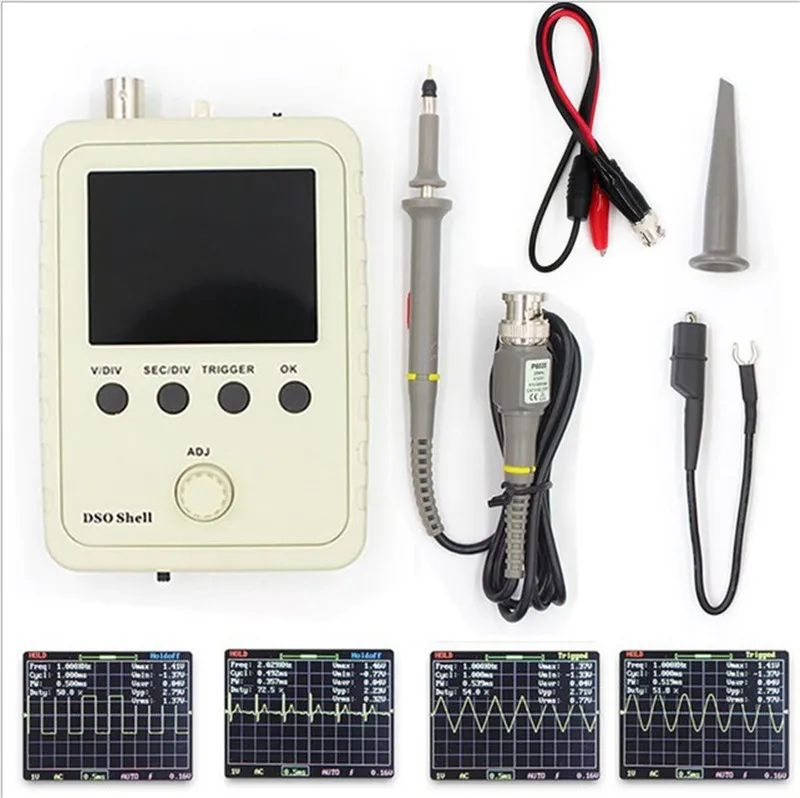

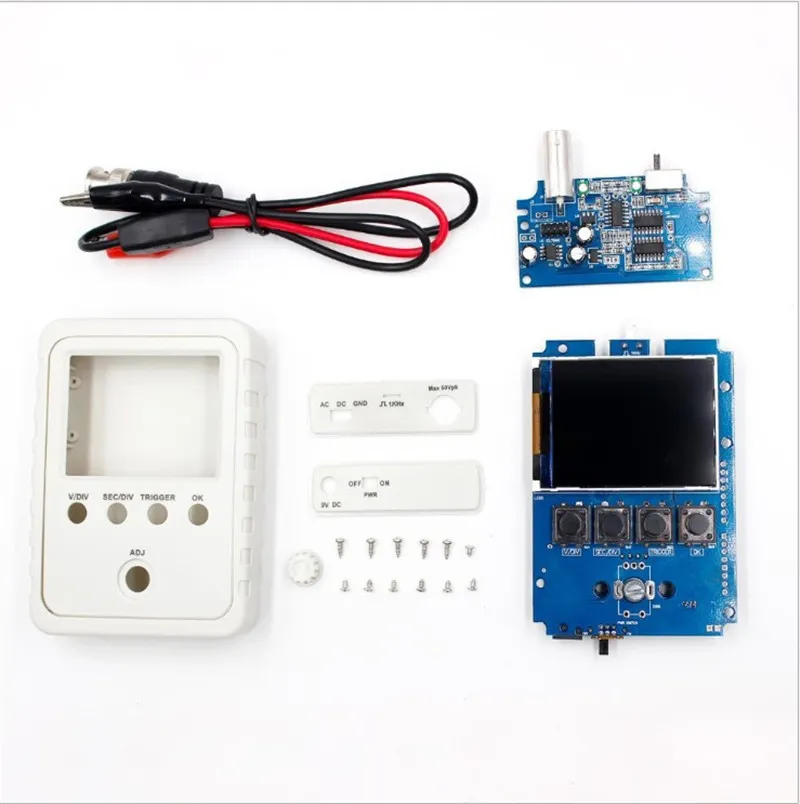

packing list:

15001K (SMD components have been welded):
All parts of the shell oscilloscope, the analog board chip components have been welded and tested

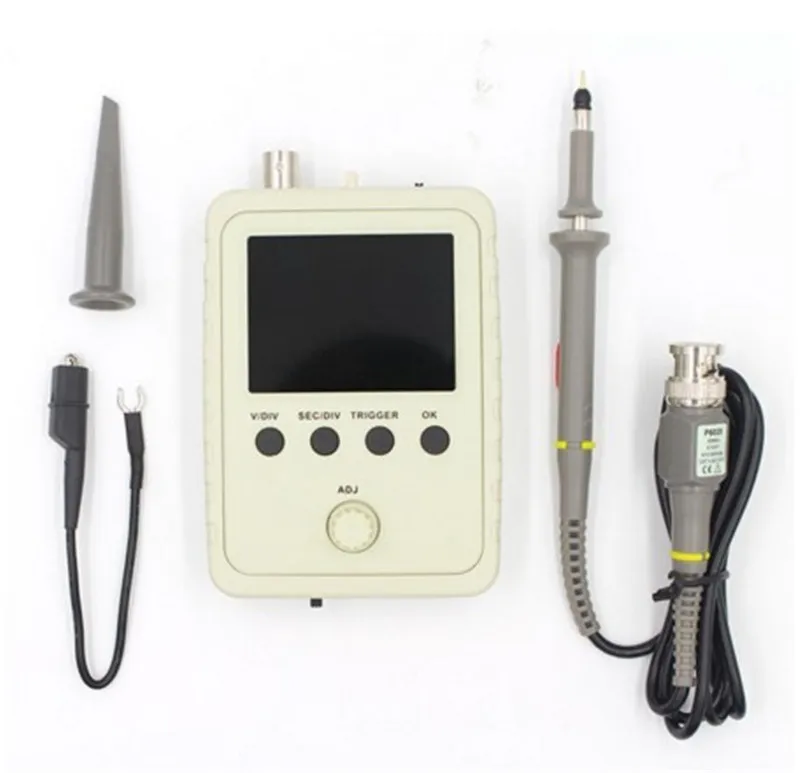

BNC fish clip probe
Assembly instructions
