Power Regulator Controller Load Discharger – PWM/MPPT 60A 100A 24V 12V 30A Dual USB

Maximize the efficiency and reliability of your solar power system with the Power Regulator Controller Load Discharger, available in PWM and MPPT versions, with support for 30A, 60A, and 100A power capacities. Designed to regulate solar energy, manage loads, and protect batteries, this controller ensures stable power output while charging devices via dual USB ports.

Ideal for off-grid solar systems, photovoltaic panel setups, battery management, and LED lighting applications in New Zealand, this smart solar charge controller supports 12V and 24V automatic voltage recognition, making it a versatile and essential component for any renewable energy system.

Key Features of the Power Regulator Controller Load Discharger

1. PWM & MPPT Solar Charging Technology

• PWM Models: Cost-effective solution with stable pulse-width modulation (PWM) charging.
• MPPT Models: Maximum Power Point Tracking (MPPT) technology for 30% more efficiency than PWM.
• Smart Load Discharging: Protects batteries from overcharging and deep discharges to prolong battery life.

2. High Current Capacity (30A/60A/100A Models)

• Available in Multiple Sizes: Choose 30A, 60A, or 100A models depending on your energy needs.
• Supports Large Solar Arrays: Compatible with solar panels ranging from 100W to 2000W.
• Automatic Voltage Detection: Works with 12V and 24V battery systems.

3. Dual USB Charging Ports

• 5V USB Output: Conveniently charge mobile phones, tablets, and USB-powered devices.
• Fast Charging Support: Delivers 2A output for quick and efficient charging.

4. Intelligent Battery Management

• Multi-Stage Charging: Includes bulk, absorption, float, and equalization charging.
• Compatible with Multiple Battery Types: Works with lead-acid, AGM, gel, lithium-ion, and LiFePO4 batteries.
• Temperature Compensation: Ensures efficient battery charging in hot and cold climates.

5. Advanced Load Control & Protection

• Overcharge & Over-Discharge Protection: Extends battery lifespan by preventing overvoltage issues.
• Short-Circuit & Reverse Polarity Protection: Prevents damage from incorrect wiring.
• Lightning & Surge Protection: Shields your system from power spikes and storm-related surges.

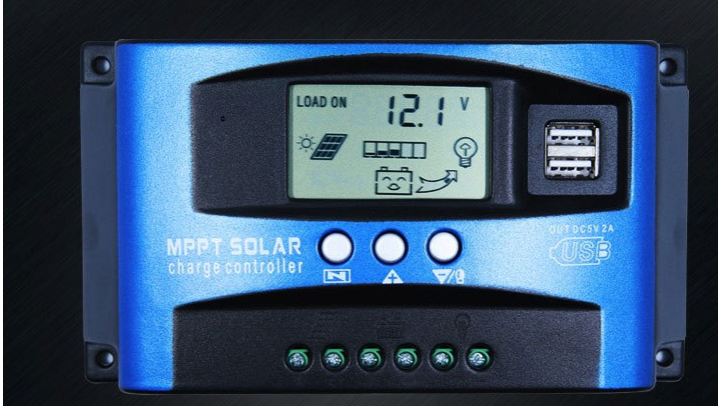

6. Smart LCD Display & Monitoring

• Real-Time Data Display: Shows battery voltage, solar input, charging status, and USB output.
• Intuitive Controls: Adjust settings directly on the controller for easy customization.
• Optional Remote Monitoring: Connect via Wi-Fi, Bluetooth, or RS485 (optional models) for remote access.

7. Rugged & Weatherproof Design

• IP65 Weatherproof Rating: Suitable for outdoor installations in harsh weather conditions.
• High-Quality Heat Dissipation: Built-in cooling fans prevent overheating.
• Durable Construction: Designed for New Zealand’s varied climate conditions, including coastal areas.

Benefits of the Power Regulator Controller Load Discharger

✔ Optimized Solar Energy Conversion

• MPPT models ensure up to 99% tracking efficiency, extracting maximum power from solar panels.
• PWM models provide a budget-friendly solution for smaller solar setups.

✔ Enhanced Battery Protection & Lifespan

• Prevents battery damage due to overcharging, deep discharge, and voltage fluctuations.
• Smart charge regulation extends battery lifespan, reducing replacement costs.

✔ Perfect for Off-Grid & Backup Power Systems

• Ideal for remote homes, farms, marine applications, and backup power setups.
• Supports solar street lights, RVs, caravans, and portable solar generators.

Technical Specifications

• Technology: Available in PWM or MPPT versions
• Current Ratings: 30A / 60A / 100A
• Voltage: Auto-detects 12V or 24V battery systems
• Maximum PV Input Voltage: Up to 100V (MPPT models)
• Battery Types Supported: Lead-acid, AGM, Gel, Lithium-ion, LiFePO4
• MPPT Efficiency: ≥ 99% (MPPT models)
• Load Control Modes: Manual, Timer, Light Sensor
• USB Output: 5V / 2A (dual ports)
• Communication Ports: RS485, optional Wi-Fi/Bluetooth
• Operating Temperature: -20°C to 60°C
• Waterproof Rating: IP65
• Display: LCD screen with backlight

Eco-Friendly & Cost-Effective Solution

The Power Regulator Controller Load Discharger promotes energy efficiency and sustainability by:

• Maximizing Solar Energy Harvesting: Reducing dependency on fossil fuels.
• Extending Battery Life: Minimizing electronic waste by preventing premature battery degradation.
• Energy-Efficient Operation: Reducing power loss and improving solar-to-battery conversion efficiency.

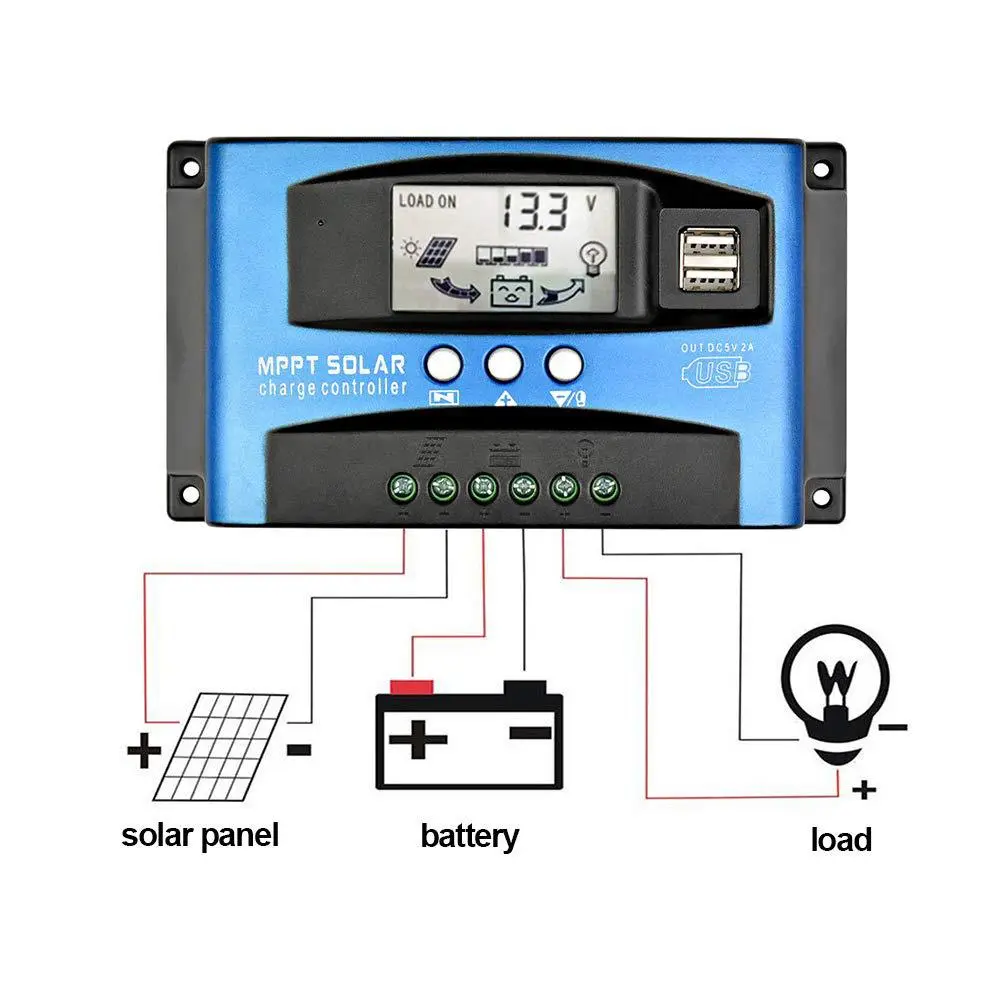

How to Use

1. Connect Solar Panels: Attach the photovoltaic panel wires to the controller’s solar input terminals.
2. Battery Connection: Securely connect the battery terminals (ensure correct polarity).
3. Load Connection: Attach DC loads or LED lights to the controller’s output.
4. Monitor Performance: Use the LCD display to check real-time solar input, battery status, and USB charging levels.
5. Adjust Settings: Customize charging modes, load timing, and battery type using the controller interface.

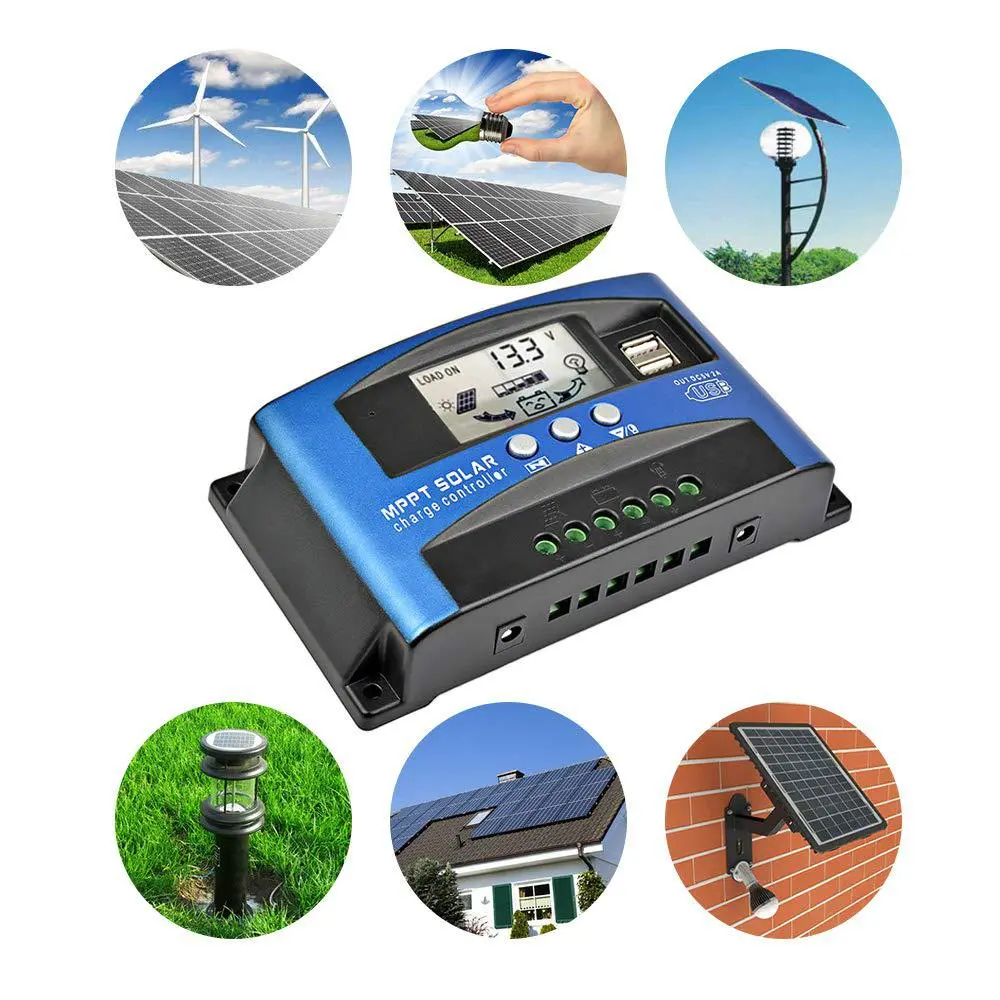

Perfect for New Zealand Solar Energy Applications

The Power Regulator Controller Load Discharger is ideal for:

• Off-Grid Solar Systems: Reliable power management for remote homes, cabins, and farms.
• Solar Street Lights & Outdoor LED Systems: Automatic dusk-to-dawn lighting control.
• Marine & RV Applications: Power regulation for boats, caravans, and mobile solar systems.
• Hybrid Solar Systems: Seamless integration with wind turbines, batteries, and backup generators.

Why Choose the Power Regulator Controller Load Discharger?

1. Efficient MPPT or Cost-Effective PWM Models: Choose based on your energy needs and budget.
2. Smart Battery Management: Protects lead-acid, AGM, gel, and lithium-ion batteries.
3. Dual USB Charging Ports: Charge mobile devices directly from solar power.
4. Weatherproof & Durable: Built for outdoor solar installations in New Zealand’s rugged climate.
5. Real-Time Monitoring: LCD screen provides instant solar and battery status updates.

Product information:
Item No.: YCX-003-100A
Material: ABS+ROHS
Brand: Neutral
Model: YCX-003-100A
