Pressure Quick Connector Set ALKJ22kS Set

Pressure Quick Connector Set ALKJ22kS: Precision and Efficiency in Fluid Connections

Introducing the ALKJ22kS Pressure Quick Connector Set

The ALKJ22kS Pressure Quick Connector Set is a high-performance solution designed for quick and secure connections in high-pressure systems. Engineered for durability and precision, this connector set is ideal for industries such as automotive, manufacturing, HVAC, and fluid testing applications. With its innovative design, the ALKJ22kS offers seamless operation, reduces downtime, and enhances efficiency in fluid transfer processes.

Key Features of the ALKJ22kS Pressure Quick Connector Set

1. Durable Construction

Crafted from premium-grade stainless steel and brass, the ALKJ22kS connector set is resistant to corrosion, wear, and high-pressure conditions. Its robust design ensures longevity even in harsh industrial environments.

2. Quick and Secure Connections

The push-and-lock mechanism allows for rapid and secure connections without the need for additional tools. This saves time during assembly and reduces the risk of leakage.

3. Versatile Compatibility

The ALKJ22kS set is compatible with a wide range of fluid systems, including air, water, hydraulic fluids, and more. It supports multiple pipe sizes and pressure ratings, making it versatile for various applications.

4. Leak-Proof Design

Integrated O-ring seals and precision-engineered fittings provide a leak-proof connection, ensuring efficiency and safety in high-pressure operations.

5. High-Pressure Performance

Designed to handle pressures up to 22,000 PSI, the ALKJ22kS set is suitable for demanding applications requiring reliability under extreme conditions.

6. Compact and Lightweight

The compact design minimizes space usage, while the lightweight components make the set easy to handle and transport.

Applications of the ALKJ22kS Quick Connector Set

Automotive Industry

• Fuel injection systems testing
• Brake fluid system maintenance
• Hydraulic line connections

Manufacturing and Industrial Use

• High-pressure hydraulic equipment
• Pneumatic tool connections
• Fluid transfer and testing systems

HVAC Systems

• Refrigerant line connections
• Pressure testing of cooling systems

Laboratory and Testing Environments

• Fluid sample extraction
• High-pressure system simulations

Specifications

• Material: Stainless steel (AISI 316) and brass
• Pressure Rating: Up to 22,000 PSI
• Operating Temperature: -40°C to 120°C
• Seal Material: Viton O-ring seals for enhanced durability and chemical resistance
• Connection Sizes: 1/4", 3/8", 1/2", and custom sizes available
• Weight: 450 grams per connector
• Set Includes: Male and female connectors, O-ring replacements, and installation guide

Advantages of Using the ALKJ22kS Connector Set

Efficiency

The push-lock design reduces assembly and disassembly time, streamlining operations and increasing productivity.

Safety

Leak-proof seals and robust materials ensure safe handling of high-pressure fluids, minimizing the risk of accidents.

Cost Savings

Durable materials and reliable performance reduce maintenance and replacement costs over time.

Versatility

Suitable for multiple fluids and applications, the ALKJ22kS eliminates the need for multiple connector types.

Maintenance and Care Tips

1. Regular Inspection: Check connectors for wear, corrosion, or damage before use.
2. Seal Replacement: Replace O-rings periodically to maintain a leak-proof seal.
3. Proper Cleaning: Clean connectors with non-corrosive cleaning agents to prevent residue build-up.
4. Storage: Store in a dry, dust-free environment to protect against contamination.

Why Choose the ALKJ22kS Set for New Zealand Industries?

New Zealand’s diverse industrial landscape, from manufacturing to agriculture, demands reliable equipment that can perform under challenging conditions. The ALKJ22kS Quick Connector Set is designed to withstand high pressures, extreme temperatures, and corrosive environments, making it an excellent choice for Kiwi businesses.

Frequently Asked Questions (FAQs)

Q1: Can this connector set handle corrosive fluids?

Yes, the stainless steel and Viton O-ring seals provide excellent resistance to most corrosive fluids.

Q2: Is the set suitable for DIY applications?

While primarily designed for industrial use, the ALKJ22kS set can be used in advanced DIY projects that require high-pressure connections.

Q3: What maintenance is required for the connector set?

Regular cleaning and seal inspections are recommended to ensure optimal performance and longevity.

Q4: Are custom sizes available?

Yes, custom connection sizes can be manufactured upon request.

Product information:

The adapter is used in the industrial field, and the pressure instrument often contains a lot of dust, impurities and oil. During the verification and testing of the pressure instrument, the dust, impurities and oil in the instrument to be inspected will enter the pressure pump through the pressure transmission medium. If the pressure pump is not cleaned in time, the pressure pump may become blocked and not work properly.
The conversion joint is made of stainless steel, and is converted into different specifications based on M20*1.5, which can solve the inspection and use of various instruments!

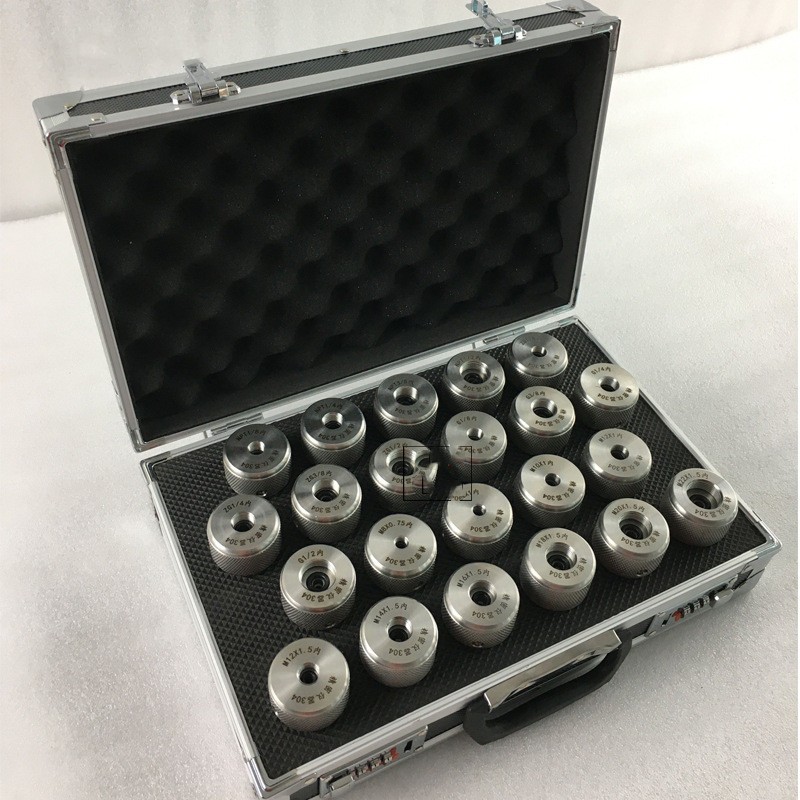

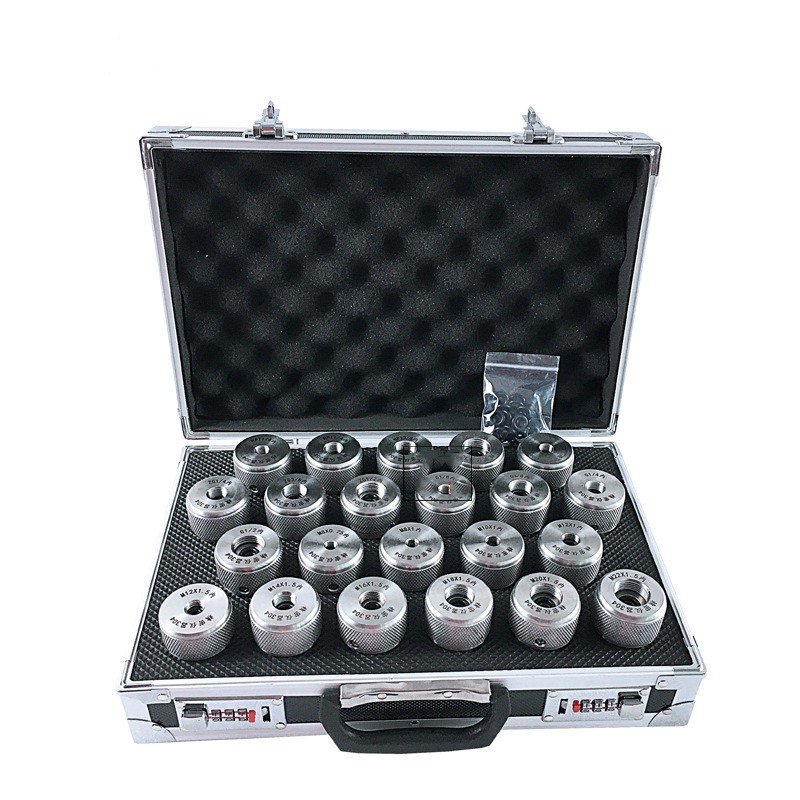

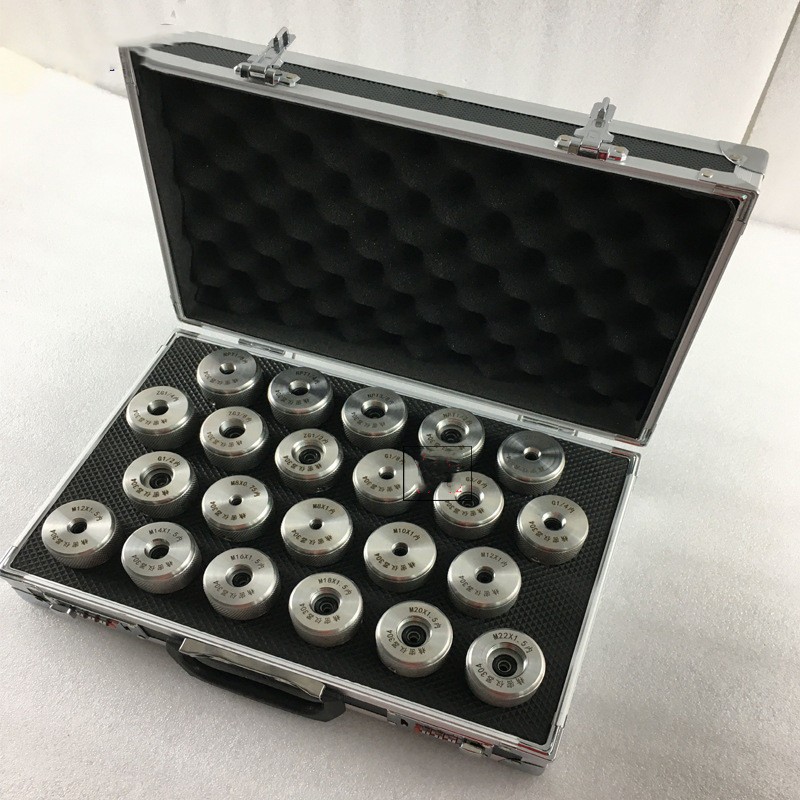

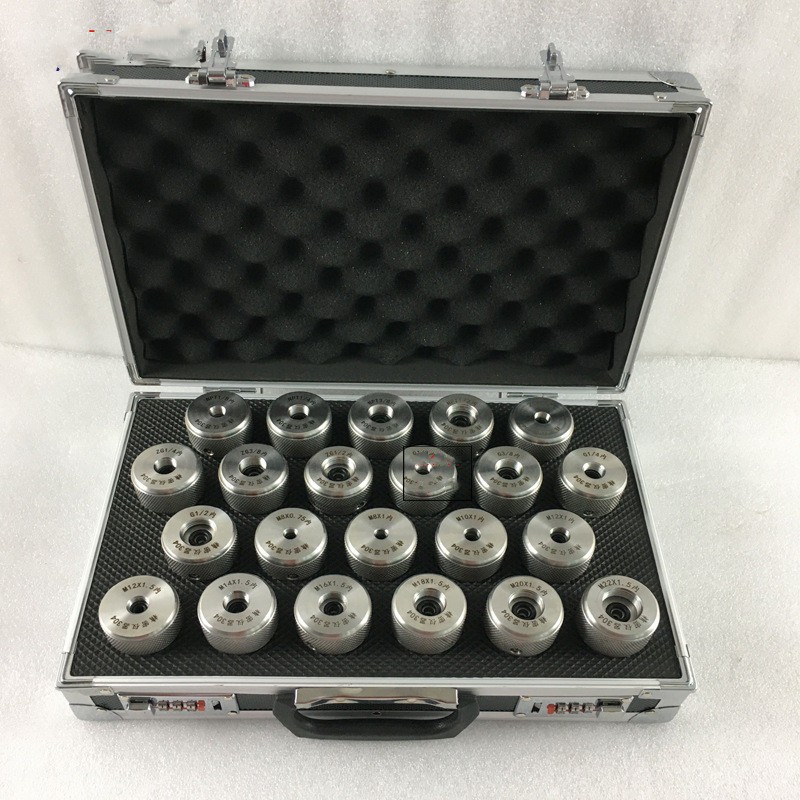

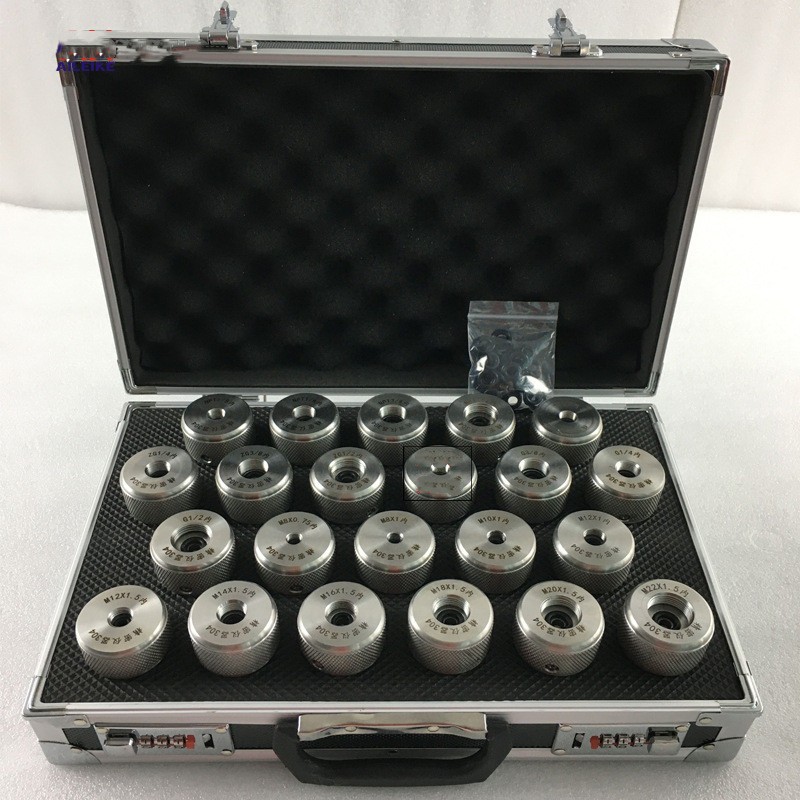

Packing list:

The 22-piece set specifications are:
M20×1.5 external to NPT1/8 internal
M20×1.5 external to NPT1/4 internal
M20×1.5 external to NPT3/8 internal
M20×1.5 external to NPT1/2 internal
M20×1.5 external to ZG1/8 internal
M20×1.5 external to ZG1/4 internal
M20×1.5 external to ZG3/8 internal
M20×1.5 external to ZG1/2 internal
M20×1.5 external to G1/8 internal
M20×1.5 external to G3/8 internal
M20×1.5 external to G1/4 internal
M20×1.5 external to G1/2 internal
M20×1.5 outside to M8×0.75 inside
M20×1.5 external to M8×1 internal
M20×1.5 external to M10×1 internal
M20×1.5 external to M12×1 internal
M20×1.5 external to M12×1.5 internal
M20×1.5 external to M14×1.5 internal
M20×1.5 external to M16×1.5 internal
M20×1.5 external to M18×1.5 internal
M20×1.5 external to M20×1.5 internal
M20×1.5 external to M22×1.5 internal
O-ring*1 pack
Standard with instrument box*1
