Single-Chip Digital LED Watch Electronic Clock Kit Transpare

The Single-Chip Digital LED Watch Electronic Clock Kit is an exciting project for electronics enthusiasts and DIYers. Perfect for those interested in building their own wearable tech, this kit offers a hands-on experience to create a fully functional digital LED watch. Featuring a sleek transparent design, the clock combines modern aesthetics with cutting-edge technology, making it an ideal project for hobbyists or anyone looking to dive into the world of electronic circuits and digital clock design.

Whether you're a beginner or an experienced electronics enthusiast, the Single-Chip Digital LED Watch Kit offers a great way to explore the inner workings of digital timekeeping. The transparent case provides a unique look into the components of the watch, allowing users to appreciate the design of each element as they assemble and use it.

Key Features of the Single-Chip Digital LED Watch Kit

1. Transparent Design for Enhanced Visibility

The transparent casing of this digital LED watch kit allows you to see the inner workings of the electronic components. This unique design adds an interesting visual aspect to the watch while giving you a clearer understanding of how the circuitry is assembled and functions. The transparent case is made from high-quality plastic, ensuring durability and protection for your electronic components while allowing full visibility.

2. Single-Chip Microcontroller for Precision

At the heart of the watch lies a single-chip microcontroller, which plays a crucial role in ensuring accurate timekeeping. This microcontroller is pre-programmed to manage the digital clock’s operations, making it a reliable and efficient choice for a compact digital watch. It minimizes power consumption while providing precise timing, making this kit ideal for long-term use.

3. Bright LED Display

The kit includes a high-quality LED display that is easy to read in both low-light and bright environments. The digital LED display shows the time in a clean, simple format, with each number lit up by bright and clear LEDs. The high-contrast display makes it easy to tell the time at a glance, adding to the convenience and functionality of the watch.

4. Comprehensive DIY Kit

This kit comes with all the necessary components required for assembly, including the single-chip microcontroller, LED display, resistors, capacitors, and other electronic parts. The components are designed for easy soldering, and the kit includes a detailed step-by-step instruction manual, ensuring that even beginners can successfully complete the assembly.

5. Customization Options

Although the kit comes with standard instructions, the modular nature of the components allows for customization. Users can experiment with different types of LEDs, microcontroller configurations, and even tweak the design of the casing to suit their personal preferences. This flexibility is ideal for anyone interested in taking their DIY project to the next level and adding a unique touch to their creation.

6. Low Power Consumption

Thanks to the energy-efficient design of the single-chip microcontroller, this digital LED watch is optimized for low power consumption. It offers excellent battery life, making it suitable for both short-term and long-term use. The watch's power efficiency ensures that you won’t have to worry about constant recharging or replacing batteries.

7. Learning and Educational Value

For those looking to enhance their skills in electronic circuit design, the Single-Chip Digital LED Watch Kit is a great educational tool. It provides practical hands-on experience in circuit assembly, soldering, and microcontroller programming. Whether you're a student, a hobbyist, or someone looking to break into electronics as a career, this kit offers invaluable learning opportunities.

8. Compact and Portable

Once assembled, the watch is lightweight and compact, making it easy to wear and carry. Its design is perfect for those who enjoy portable electronics projects or who simply want a fun and functional DIY digital watch. The small size of the components and the transparent case ensures that the watch maintains a sleek, modern appearance without being bulky.

Benefits of Building Your Own Digital LED Watch

1. Increased Understanding of Electronics

Building your own digital watch allows you to deepen your understanding of how electronic circuits and microcontrollers work together to create functional devices. By assembling the LED display, wiring, and components, you gain firsthand experience that can be applied to other electronics projects.

2. Personalized Design

The transparent design and customizable nature of the kit allow you to create a personalized digital LED watch. You can choose your preferred colors, add extra features, and even make adjustments to the design. This freedom of customization is ideal for those who enjoy creating unique, one-of-a-kind gadgets.

3. Satisfaction of Completing a DIY Project

There’s a unique sense of satisfaction that comes with completing a DIY project. Once you've assembled the Single-Chip Digital LED Watch, you'll have a functional and impressive piece of wearable tech that you built yourself. The accomplishment of constructing a digital timepiece from scratch is highly rewarding and can be a great conversation starter.

4. Perfect for Gift-Giving

This DIY digital LED watch kit makes for an excellent gift for anyone interested in electronics or wearable tech. Whether it’s for a birthday, holiday, or a special occasion, the recipient will appreciate the thoughtfulness behind the gift, especially if they enjoy building and customizing electronic devices.

5. Affordable DIY Watch Solution

Building your own digital watch with this kit is an affordable option compared to purchasing a commercially available digital watch. You can assemble the watch at a fraction of the cost while still getting a fully functional, stylish, and unique timepiece.

6. Fun and Engaging Project

For those looking for a fun, hands-on project, this DIY kit provides an engaging and enjoyable experience. Whether you're a beginner or an experienced electronics hobbyist, assembling this digital LED watch will keep you entertained and learning as you go.

How to Assemble the Single-Chip Digital LED Watch Kit

Step 1: Prepare Your Workspace

Ensure that you have a clean, well-lit workspace with plenty of room for assembly. Gather all the tools you’ll need, such as a soldering iron, soldering wire, wire cutters, tweezers, and a small screwdriver.

Step 2: Review the Instruction Manual

Before you begin, carefully read through the included instruction manual. This will help you familiarize yourself with the components and understand the step-by-step assembly process. Take note of any important warnings or tips that will assist you during the assembly.

Step 3: Solder the Components

Start by soldering the components onto the provided PCB (printed circuit board). Pay attention to the correct placement of each component according to the instructions. You’ll need to solder the microcontroller, resistors, capacitors, and LEDs carefully to ensure that the circuit functions properly.

Step 4: Install the LED Display

Once the components are soldered in place, install the LED display into the designated slot on the board. Ensure that the display is properly aligned and securely attached.

Step 5: Test the Watch

After assembling the kit, power on the watch and test its functionality. If everything is working properly, the LED display should light up, showing the current time. If necessary, adjust the time settings according to the instructions.

Step 6: Assemble the Transparent Case

Once the electronics are working, place the assembled components into the transparent casing. Ensure that all the wires are neatly arranged and that the casing fits securely.

Step 7: Enjoy Your New Digital LED Watch

With everything assembled, your DIY digital LED watch is now ready to wear and show off. Enjoy the satisfaction of having built your own custom timepiece!

Product Information

Material: Acrylic + PCB + Electronic Components + PU
Color: Black
Display: Digital
Working Voltage: 3.7-5V
Power Supply: 5 * CR1220 Button Battery (Not Included) / 3.7V rechargeable battery(Need to Refit By Yourself)
Clock Regulating Mode: Press Button Adjustment

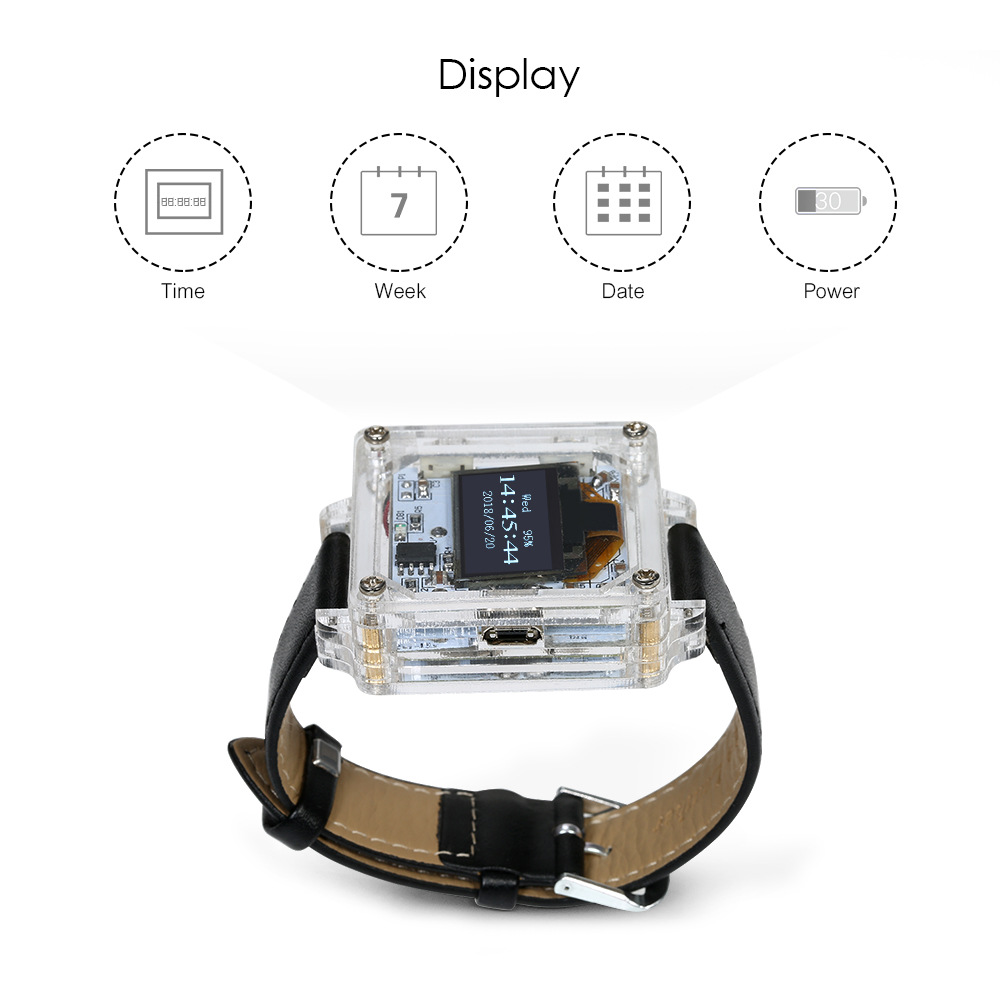

Display Mode: OLED White Digital Display
Display: Time, Week, Date, Power
Time Mode: 24Hour, 12 Hour
Date Mode: Year/Month/Day, Month/Day/Year, Day/Month/Year
Week Mode: English, Chinese
Month Error: 2s
Standby Current: About 1uA
2 Setting Buttons on the Side of Watch: Convenient to Wake up and Set
Energy Saving: Light for 10 seconds then change to power saving mode automatically
Water-resistant Level: Not Water-resistant

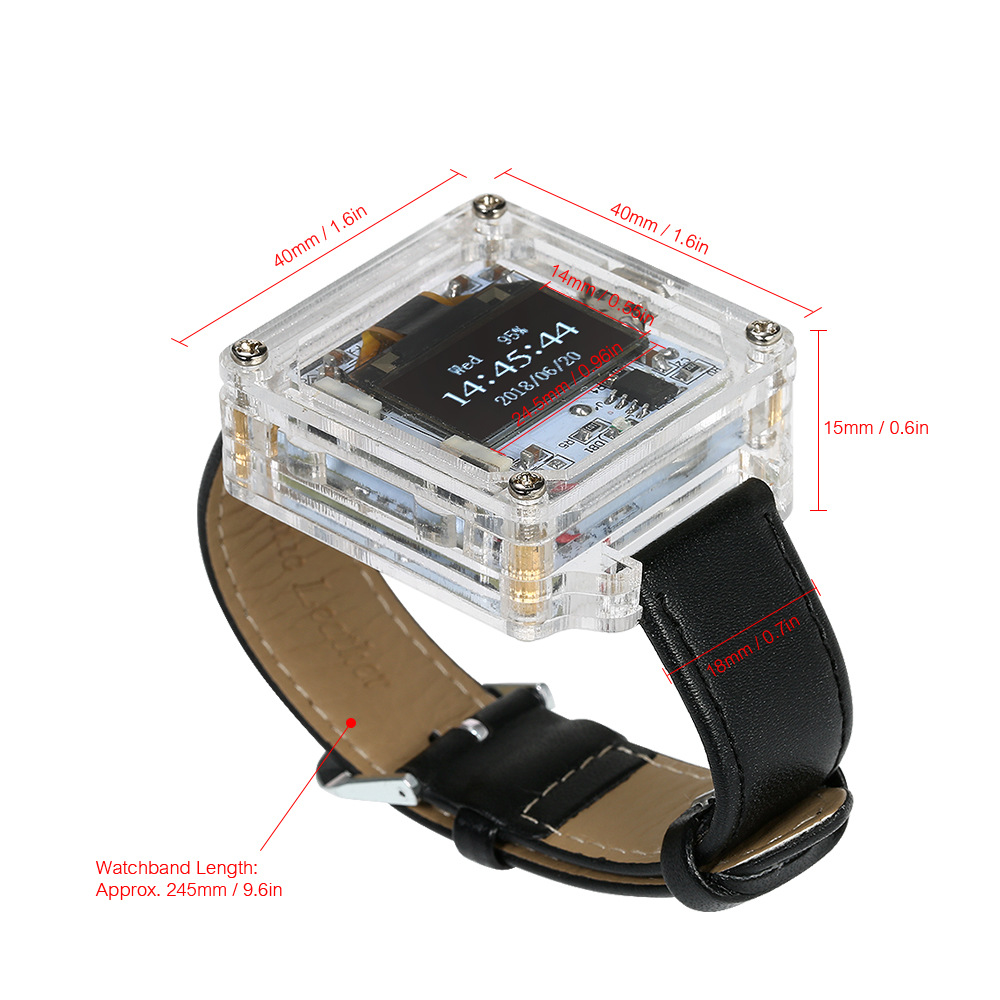

PCB Size: 30 * 30mm / 1.2 * 1.2in
OLED Screen Size: 24.5 * 14mm / 0.96 * 0.55in
Dial Size: Approx. 40 * 40mm / 1.6 * 1.6in
Dial Thickness: Approx. 15mm / 0.6in
Watchband Length: Approx. 245mm / 9.6in
Watchband Width: Approx. 18mm / 0.7in
Item Weight: Approx. 32g / 1.1oz
Package Weight: Approx. 38.5g / 1.4oz
Package Size: 13.5 * 9 * 2cm

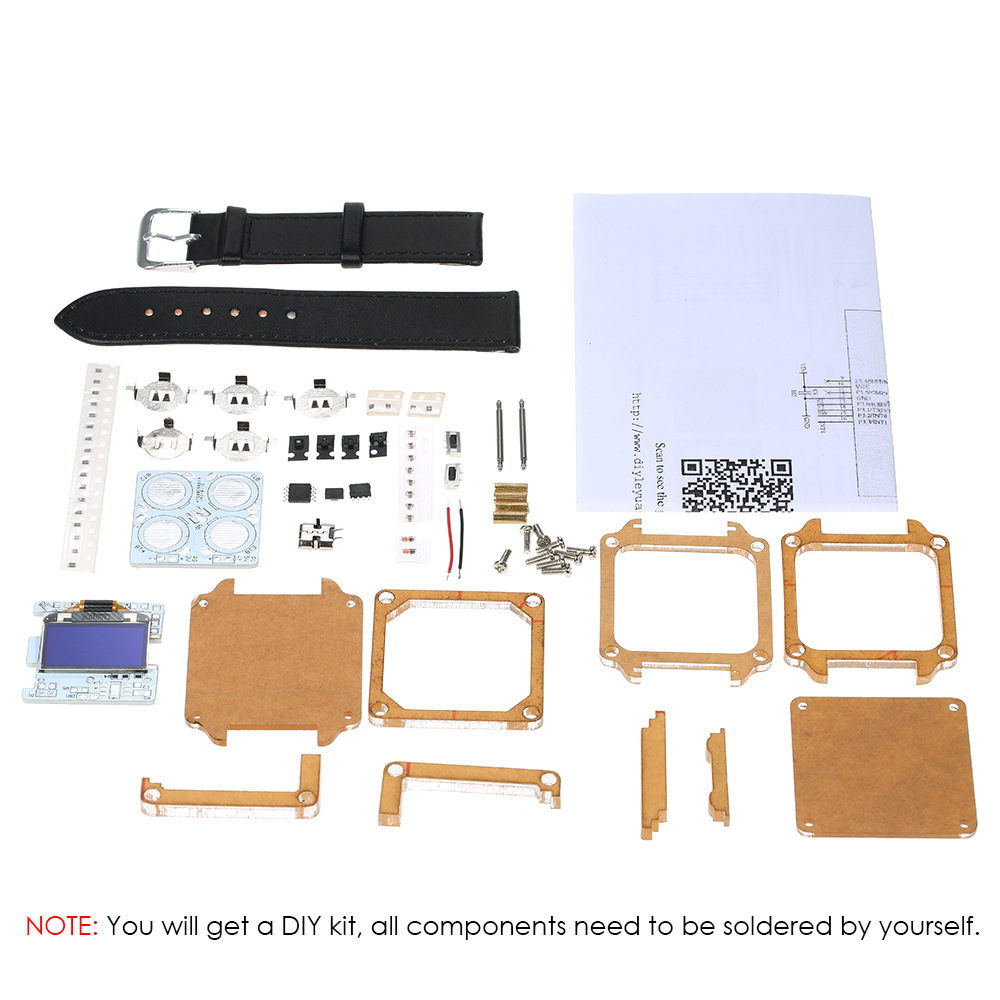

Package List:

1 * Electronic Watch DIY Kit
1 * User Manual
