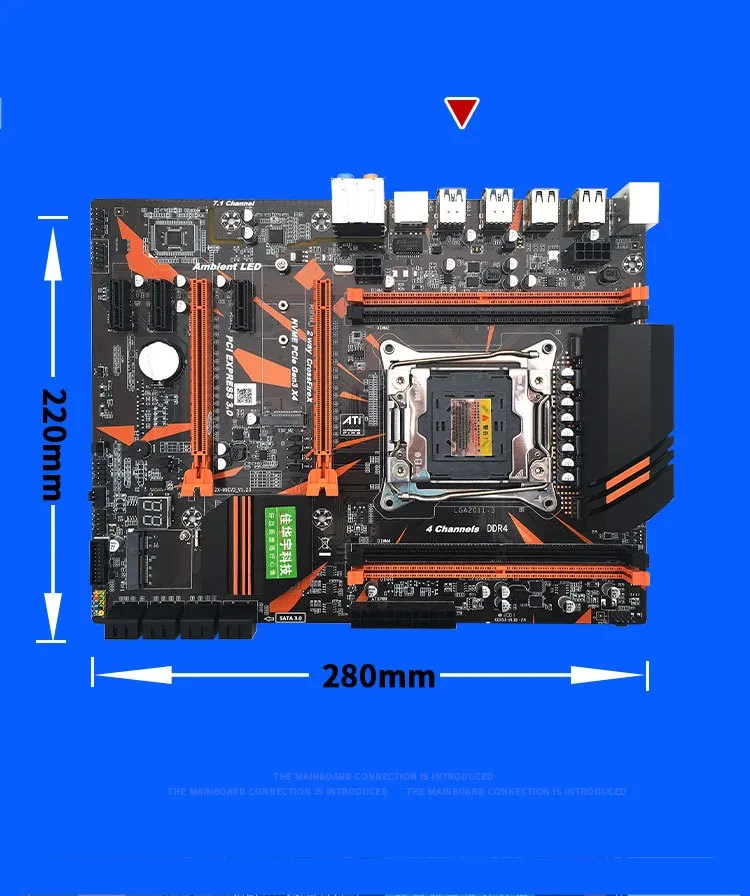

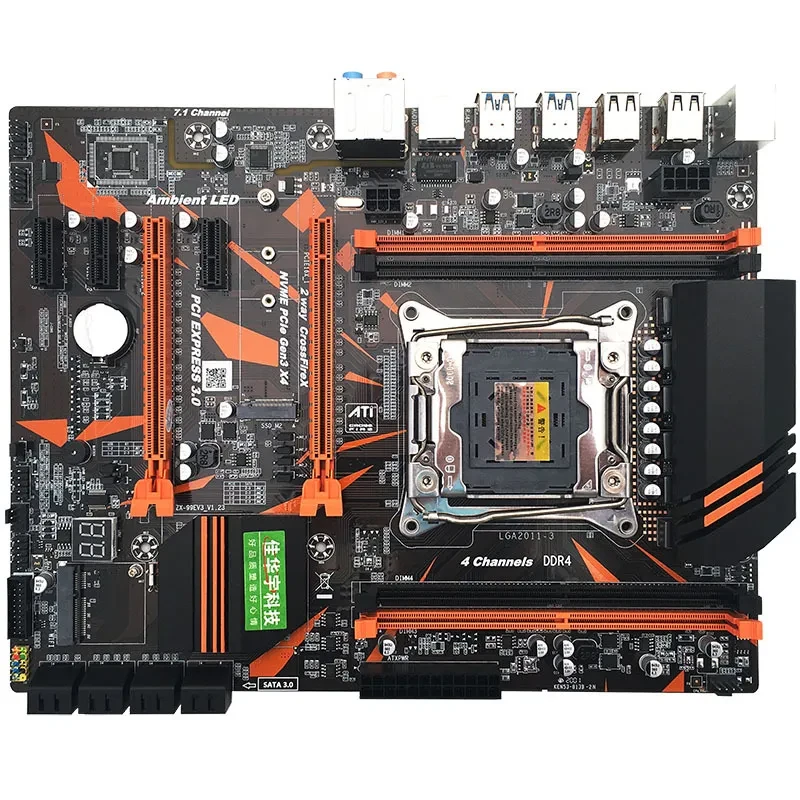

X99 Computer Motherboard lga2011-3 pin CPU Four Channel DDR4 Memory
Approx $104.08 USD
Motherboard chip:
Integrated sound card / network card main chipset inte1 x99 series
Audio chip integrated with 7.1 channel sound effect chip
Network card chip integrated rtl8111h gigabit network card
Processor specification:
CPU slot LGA 2011-3
CPU type: 2011-v3 at the beginning of 58 or 6869 of Zhiqiang series (e.g. 5820k 5960k)
And i7 series (i7 CPU cannot be used with server memory module at the same time)
Memory specification:
Memory type DDR4 2400 / 2333mhz (reg ECC or ordinary desktop memory)
Memory slot 4 x DDR4 DIMM
The memory capacity can reach 4 * 32g
Expansion slot:
2X PCI-E x16 video card slot 3xpci-e X1 slot
2xusb2.0 slot (1 set) 2x USB3.0 interface (1 set)
8xsata3.0 interface
1 x m.2 PCIe nvme high speed hard disk interface (full speed
1 / 0 interface:
PS / 2 interface PS / 2 keyboard mouse universal interface 1xrj45 network interface
X USB2.0 interface 4x USB3.0 interface
7.1 channel audio interface
Other parameters:
One 8-pin power socket (rely on the main power supply when only 4-pin is connected) and a 24 pin power interface
4 power supply modes
With digital fault diagnosis display and buzzer
WiFi interface, 8LED color audio lamp
Warranty information:
Warranty policy shop or manufacturer Three Guarantees service
The warranty period is 3 years (free of charge for one year and cost maintenance for the next two years)
Important reminder:
The color of the slot bottom plate may be different from each batch, and the products are continuously optimized and upgraded,
If there is any detail adjustment, the page introduction is not updated in time, please understand!
The product may be provided by a different brand of comparable quality.
The actual product may vary slightly from the image shown.
